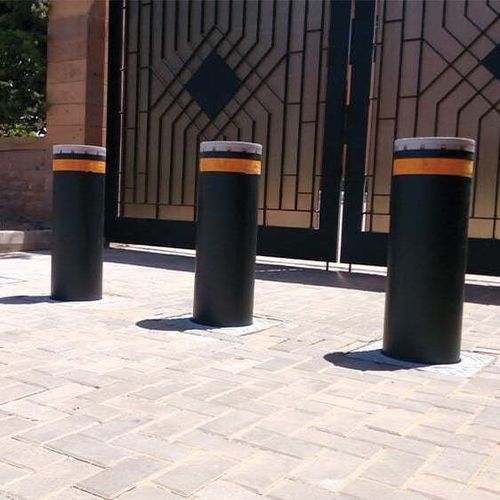

Security bollard J275 2K20

access controlretractableautomatic

Product overview
Bollards from FAAC for perimeter protection of critical areas. Traffic bollards specifically designed to protect perimeters and regulate vehicular access to restricted zones with elevated security requirements. The FAAC J275 2K20 range is recommended for vehicular access control and perimeter protection in critical sites and is certified to withstand impacts from heavy vehicles under referenced test conditions.

Variants

• J275 HA 2K20 - Retractable bollard
• J275 F 2K20 - Fixed bollard

J275 HA 2K20 - Retractable bollard

• Performance certified according to PAS 68 and IWA 14-1 standards.
• Capable of stopping a 7,500 kg truck in dual-unit configuration (tests referenced at 48 km/h and 50 km/h in different test reports).
• Designed and guaranteed for high-frequency operation.
• Simplified maintenance procedures (possible with a single operator).
• Hydraulic control unit integrated into the bollard.
• “Gentle stop” function to ensure controlled stopping at the lower limit switch.
• Anti-tamper head protected by a security lock with encrypted key to prevent unauthorized lowering.

J275 F 2K20 - Fixed bollard

• No power supply or wiring required.
• “Shallow mounted” design: minimal excavation depth required.
• Visually identical to the retractable (HA) models, suitable for mixed installations.

Quick facts

• Type of operator: Hydraulic Automatic (J275 HA 2K20) / Fixed (J275 F 2K20)
• Height (cylinder from ground): 800 mm

Technical description (models and item codes)
Model | Item code
J275 HA 2K20 | 116401
J275 HA 2K20 INOX | 116431
J275 F 2K20 H800 | 116421
J275 F 2K20 H800 INOX | 116441

Technical features

• Type of operator: Hydraulic automatic (J275 HA 2K20) / Fixed (J275 F 2K20)
• Cylinder height from ground: 800 mm
• Cylinder diameter: 275 mm
• Release device: Yes (J275 HA 2K20)
• Max power: 575 W (J275 HA 2K20)
• Break-in resistance: 673,000 J (dual unit, J275 HA 2K20) — 656,000 J (J275 F 2K20)

Certifications & performance notes

• Performance certified according to PAS 68 and IWA 14-1 standards.
• Tested and certified to stop heavy vehicles under the referenced standards (examples include arrest of a 7,500 kg truck at 48 km/h in dual-unit configuration and reports citing 50 km/h in dual installation).

Technical specifications

• Model family: J275 2K20
• Variants: J275 HA 2K20 (Retractable), J275 F 2K20 (Fixed)
• Operator types: Hydraulic Automatic (HA) / Fixed (F)
• Height (cylinder from ground): 800 mm
• Cylinder diameter: 275 mm
• Integrated hydraulic control unit (HA variant)
• Max power (HA): 575 W
• Release device: Yes (HA)
• Break-in resistance: 673,000 J (dual unit, HA) / 656,000 J (F)
• Certifications: PAS 68, IWA 14-1
• Design: Shallow-mounted option for fixed version; retractable and fixed visually identical for mixed installations
