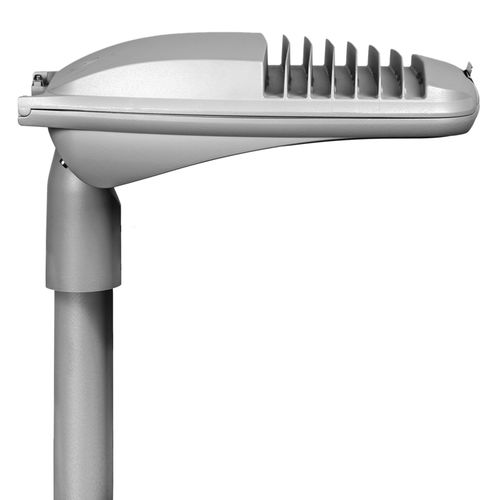

Urban lamp post PROXIMO CITY

contemporarycast aluminumLED

With the new and innovative PROXIMO CITY streetlight, Fael LUCE fits between Humanity and Nature, offering a new solution to contexts such as residential areas, parks, squares, and urban agglomeration: the city lights will be closer to the citizen. TECHNICAL SPECIFICATIONS • Streetlight composed of 6 to 24 LED. • Multi and Single chip LED technology on a pressed aluminum circuit, highly heatdissipating MCPCB (Metal Core Printed Circuit Board). • Color temperature selection variable from 4000K to 5000K. • High efficiency electronic power source and duration, intended for external use. All versions are protected against overloads and surges to protect components and LEDs. • The system, both in CL I and in CL II, is equipped with a knife switch to interrupt the power supply at the device’s opening. • Cable plate complete with easily replaceable electronic unit with “Plug and Play” anti-inversion system. • Replacement of the entire LED module including the upper cover. • Pressure compensation filter in Teflon. • Opening provides access to optics and cable box in a single, easy step by using the anterior quick release clip in stainless steel. • To prevent accidental closure of the cover during assembly and maintenance, the device is equipped with an automatic anti-closing mechanism. • The power supply cable accesses the device through a PG 16 cable gland (IP68). • Power supply 220 - 240V / 50 - 60 Hz VAC and also available in 120-277V / 50-60 Hz VAC. • Power correction factor > 0.9.
