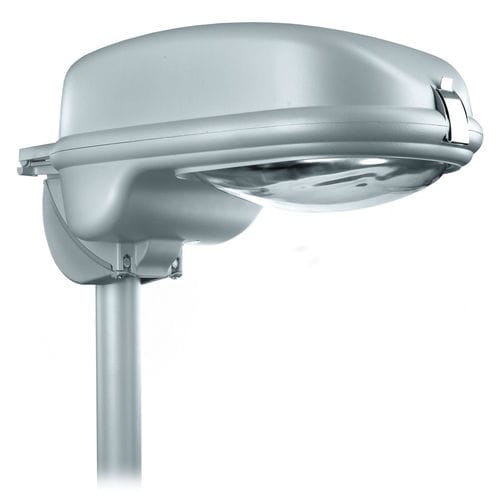

Urban lamp post ITINERA

contemporarycast aluminumHID

The state-of-the-art framework is designed to light up roads, motorways, residential areas and open spaces. In the Bipower version, the streetlight ITINERA represents a further possibility to increase the carbon footprint of public authorities in the management of energy consumption. TECHNICAL SPECIFICATIONS The housing (body and top cover) is manufactured in die-cast aluminium alloy. Coated with polyester powders in Silver colour. Twin colours available on request. Reflector is made of high purity (99,8%) one piece pressed electro-polished anodised aluminium. Post top entry installation, Ø max 76 mm, tilt 0 + 5° + 10° + 15°. Side entry installation , Ø max 76 mm, tilt 0 + 5°. In case of side entry installation with tilt of 10° and 15°, an inclination luminaire accessory limiting the tilt at 0°, is included. Gaskets are made of anti-age weather resistant silicon rubber. The connection pole compartment closure is made in plastic material of high resistance. For Class II electrical, the floodlight is equipped with a safety switch that disconnects the main power supply on opening the luminaire in maintenance. Porcelain lamp holder with horizontal and vertical mechanical focusing device. Adjustable reflector that optimize the optical performance and light distribution. Connection to power supply via a cable gland PG 13,5 IP68. Protection degree against external impacts: IK 08. Compensation filter in Teflon.
