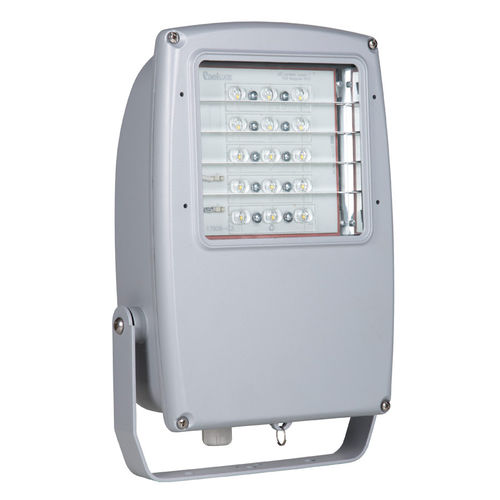

IP66 floodlight MACH 3 WAY

LEDoutdoorfor public space

Cycling paths, roads and pedestrian areas are lighted up with complete safety thanks to our solution MACH 3 WAY LED, created to correspond to most demanding requests of street lighting applications, for medium and low installation heights. Various options allow to reach excellent illumination levels, in a compact body, easy to install. TECHNICAL SPECIFICATIONS Floodlight for street, bike paths and urban illumination composed of 12-15 LED with LED current equal to 530mA and 700mA. First brand Led (Luxeon T) mounted on a pressed aluminum circuit, highly heat-dissipating MCPCB (Metal Core Printed Circuit Board). Color temperature selection up to 4000K. High efficiency electronic power source and duration, intended for external use. All versions are protected against overloads and surges to protect components and LEDs. Cable plate complete with easily replaceable electronic unit. Pressure compensation filter in Teflon. Opening provides access to optics and cable box in a single, easy step by using two solid stainless screws. Power supply 220 - 240V / 50 - 60 Hz VAC and also available in 120-277V / 50-60 Hz VAC. Power correction factor > 0.9. Insulation class I and II. Overall protection degree: IP66. Protection degree against external impacts: IK08 CE Certification. All the electric components are ENEC certified. Construction norms in compliance with EN 60598-1, EN 60598-2-3.
