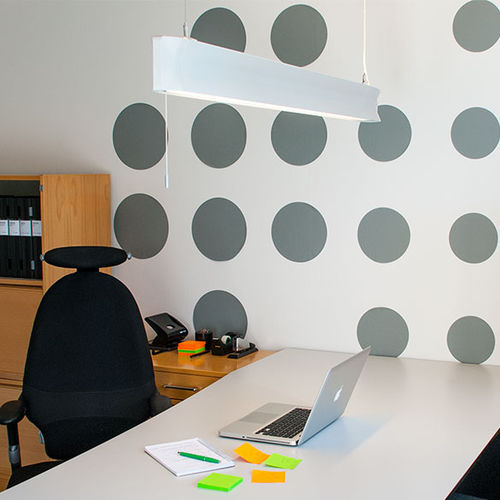

Hanging light fixture WRAP

LEDlinearIP20

Installation Wire suspended via friction locks secured to the luminaire. The bracket slides along the luminaire for flexible pendant spacing. See wire suspension. Connection Connections are made at the end of the luminaire and are concealed by the end-cap. 5-way snap-in terminal block at one end of the luminaire. Design Body in extruded aluminium and end-caps in cast metal. White (RAL 9016) structured finish. Opal acrylic plastic cover on top of the luminaire. Louvre Lamell – lamell louvre in grey enamelled sheet steel. Beta Opti – double parabolic sides and crosswise dulled reflectors in metallised aluminium with an integrated opal film that minimises the risk of uncomfortable glare from the diodes. LED-information 4000 K: Ra (CRI) min. 80, MacAdam 3 SDCM. Driver life-time: up to 100.000 h/10 % (max failure). Miscellaneous Wrap LED has a specially developed lamell louvre with excellent mechanically shielding, avoiding glare from the diodes at certain angles.
