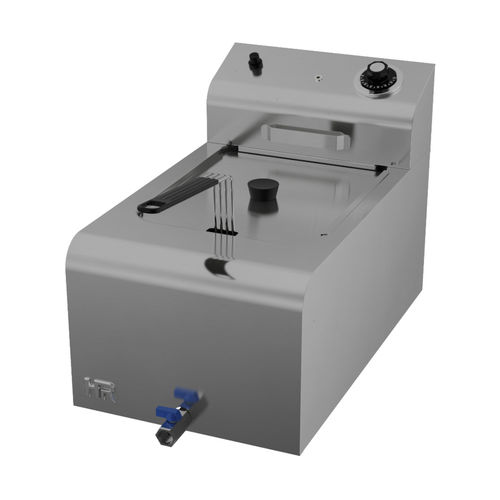

Electric fryer FD10L300

professionalcountertop

Presentation
SERIES 500 · FD10L300 · 10 L electric fryer

Main features

• Stainless steel AISI 304 pressed tank with large cold zone
• Resettable safety thermostat 230ºC (20A)
• Curved lines for easier cleaning
• Drain tap for safe oil removal
• Oil level MAX-MIN indicator
• Metallic LED indicator lights
• Economy models with 20A contactor
• AR and TRIF versions with double 40A contactor
• Dimensions shown exclude basket-handle projection
• High-quality baskets

Details

• Width: 800 mm
• Depth: 230 mm
• Height: 470 mm
• Weight: 30 kg
• Net usable volume (L): 10
• Power: 9.6 kW
• Kcal/h: 7,256

Packaging

• Packaging width: 0
• Packaging depth: 0
• Packaging height: 0
• Packaging weight: 0
• Packaging volume: 0

Downloads
Technical datasheet available in PDF format.

Technical specifications

• Tank material: Stainless steel AISI 304
• Large cold zone for safer frying
• Resettable safety thermostat 230ºC (20A)
• Contactor: 20A on economy versions; double 40A contactor on AR and TRIF versions
• Drain system with tap
• Metallic LED indicator lights
• Dimensions (W×D×H): 800 × 230 × 470 mm (excluding basket handle projection)
• Approx. gross weight: 30 kg
• Rated power: 9.6 kW (7,256 Kcal/h)
• Net usable volume indicated on datasheet: 10 L (see datasheet for tank details)
