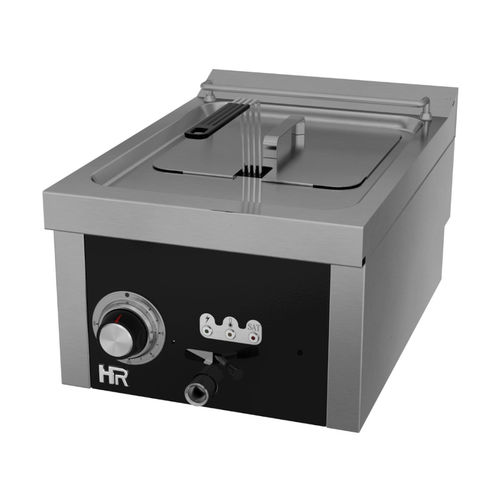

Electric fryer FD10L6M600S

for commercial kitchencountertop

Summary
SERIES 600
FD10L6M600S
Electric fryer 10 L single-phase 6-basket countertop

Features

• Resettable safety thermostat
• Drain tap
• Manufactured in AISI 304 stainless steel
• MIN-MAX oil level indicator
• Foldable AISI 304 stainless steel heating element for easy cleaning of the vat
• Metallic LED indicator lights
• Floor models include 1 oil recovery filter per machine
• Countertop models include removable drain tube
• All models feature double 40A contactor
• High-quality baskets
• Inset worktop in AISI 304 stainless steel, 1.5 mm thickness
• Height-adjustable stainless steel feet

Details

• Width: 800 mm
• Depth: 230 mm
• Height: 470 mm
• Weight: 30 Kg
• Net usable volume (L): 0
• Power: 9.6 kW
• Kcal/h: 7256

Packaging

• Packing width: 0
• Packing depth: 0
• Packing height: 0
• Packing weight: 0
• Packing volume: 0

Technical features / Specifications

• Model: FD10L6M600S
• Series: SERIES 600
• Type: Electric fryer 10 L single-phase 6-basket countertop
• Material: AISI 304 stainless steel (vat, worktop)
• Heating element: Foldable AISI 304 stainless steel
• Safety: Resettable safety thermostat
• Control and signalling: Metallic LED indicator lights
• Draining: Drain tap; countertop models with removable drain tube
• Filtration: Floor models with 1 oil recovery filter per machine
• Electrical components: Double 40A contactor
• Baskets: High-quality baskets
• Worktop: Inset, 1.5 mm thickness
• Feet: Height-adjustable, stainless steel
• Dimensions (mm): Width 800 x Depth 230 x Height 470
• Net weight: 30 Kg
• Power: 9.6 kW
• Energy output: 7256 Kcal/h
