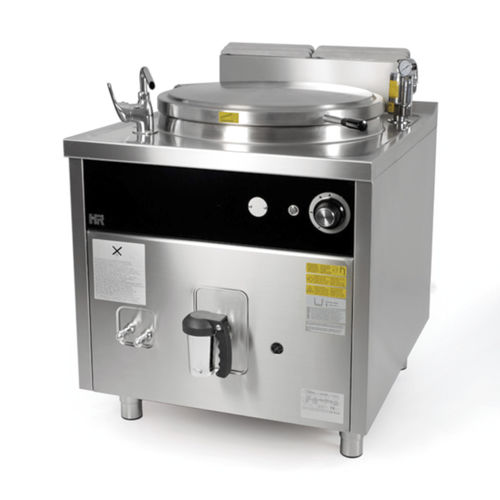

304 stainless steel kettle MG150L900Estainless steel316 stainless steelnot specified
Add to favorites
Compare this product
Characteristics
- Material
- 304 stainless steel, stainless steel, 316 stainless steel
- Designer
- not specified
Description
Series
SERIES 900
Description
Available documentation
Technical datasheet (PDF) available for download.
Characteristics / Technical specifications
SERIES 900
Description
- Body in AISI 304 stainless steel
- Worktop in AISI 304 stainless steel, 2 mm thickness
- Tank bottom in AISI 316 stainless steel
- Indirect heating; jacket chamber walls in AISI 304
- No autoclave
- Thermal insulation provided by high-density ceramic fiber 64/128
- Jacket water level control
- Jacket pressure control with safety valve calibrated to 0.5 bar, vacuum valve and pressure gauge
- Safety thermostat
- High-resistance drain tap
- Water filling tap
- Height-adjustable stainless steel legs
- Safety thermocouple
- Electric ignition with protected pilot flame
- Heating by AISI 304 tubular burners
- Automatic option includes automatic filling and purging of the jacket
Available documentation
Technical datasheet (PDF) available for download.
Characteristics / Technical specifications
- Model: MG150L900E
- Width: 800 mm
- Depth: 230 mm
- Height: 470 mm
- Weight: 30 Kg
- Net usable volume (L): 0
- Power: 9.6 kW
- Kcal/h: 7,256
