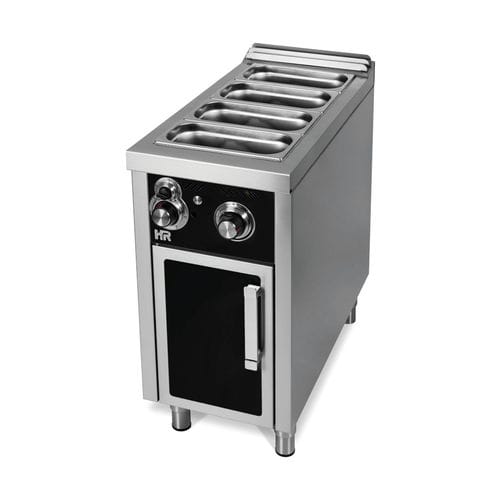

Gas bain-marie BMG9004E

Series and model
BMG9004E, SERIES 900

Overview

• Allows rapid cooking of food
• Body in AISI 304 stainless steel
• Filling valve included
• Drain valve included for tank cleaning
• Discharge connectable to main drain; includes overflow
• Filters on each drain
• MAX-MIN water level indicator
• Includes standard doors
• Height-adjustable stainless-steel legs
• AISI 304 stainless-steel worktop, 2 mm thickness
• Pans not included
• Includes overflow
• Automatic ignition with pilot flame
• High-performance burner

Details

• Width: 800 mm
• Depth: 230 mm
• Height: 470 mm
• Weight: 30 Kg
• Useful net volume (L): 0
• Power: 9.6 kW
• Kcal/h: 7,256

Documentation available
Technical datasheet available (PDF).

Features / technical specifications

• Type: Gas bain-marie, 400 shelf
• Materials: Body and worktop in AISI 304 stainless steel; worktop thickness 2 mm
• Water systems: Filling valve, drain valve for cleaning, MAX-MIN level indicator, overflow and filters on drains
• Included accessories: Standard doors; height-adjustable legs
• Ignition: Automatic with pilot flame
• Burner: High-performance
• Main dimensions: 800 mm (width) x 230 mm (depth) x 470 mm (height)
• Weight: 30 Kg
• Nominal power: 9.6 kW (7,256 Kcal/h)
• Notes: Pans not included
