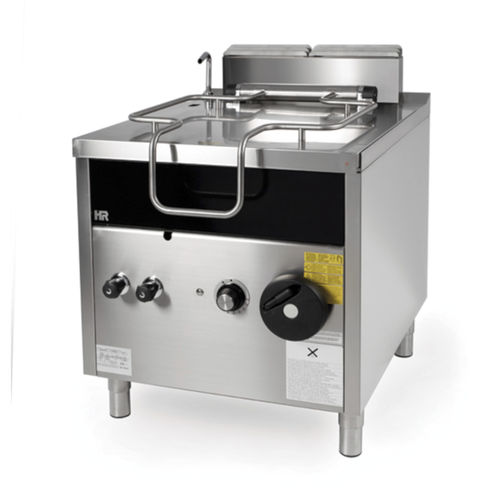

Gas bratt pan SBG80L900E

for commercial kitchen

Series and model
SBG80L900E — SERIES 900 — Gas tilting braising pan 80L

Main features

• Body in AISI 304 stainless steel
• Worktop in AISI 304 stainless steel, 2 mm thickness
• Tank constructed in stainless steel
• Manufactured bowl bottom with treatment to maximize performance
• Balanced lid in AISI 304 stainless steel
• Heat-resistant handle
• Thermal insulation provided by high-density ceramic fiber 64/128
• Lid fitted with ergonomic handle
• Manual lifting/tilting mechanism
• Height-adjustable stainless steel legs
• Includes water filling tap
• Heating by high-efficiency AISI 304 tubular burners
• Ignition by piezoelectric starter and pilot burner
• Heating control valve with thermocouple safety system

Details

• Width: 800 mm
• Depth: 230 mm
• Height: 470 mm
• Weight: 30 Kg
• Net usable volume (L): 0
• Power: 9.6 KW
• Kcal/h: 7,256

Features / technical specifications

• Main material: AISI 304 stainless steel (body, worktop and lid)
• Worktop thickness: 2 mm
• Thermal insulation: high-density ceramic fiber 64/128
• Heating system: high-efficiency AISI 304 tubular burners
• Ignition system: piezoelectric starter and pilot burner
• Safety control: valve with thermocouple
• Tilting mechanism: manual lift
• Accessories: water filling tap, ergonomic handle
• Legs: height-adjustable, stainless steel
• Rated power: 9.6 KW (7,256 Kcal/h)
• Unit weight: 30 Kg
• Dimensions (mm): 800 x 230 x 470 (Width x Depth x Height)
