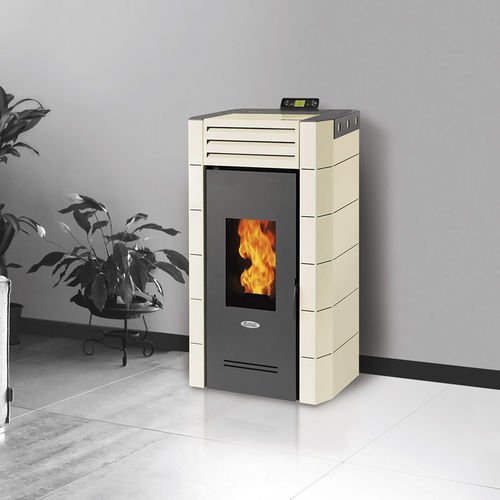

pellet boiler stove / contemporary / steel / ventilated
H18A

{{requestButtons}}

Characteristics

  • Power source:

    pellet

  • Style:

    contemporary

  • Material:

    steel

  • Other characteristics:

    ventilated

  • Heat output:

    Min.: 4 kW

    16.5 kW

    Max.: 18.5 kW

Description

Technical features:
- Weekly programmer with 4 ON and 4 OFF daily time settings;
- Ready for connection with external thermostat;
- Painted steel sides;
- Stand-by or modulation function;
- Integrated environment thermostat;
- Steel combustion chamber;
- Cast iron brazier (ventilated cleaning);
- Serial interface for technical user.

Optionals:
- GSM Kit, for SMS remote control;
- FUMES Kit, additional flue;
- HYDRO Kit, for domestic hot water;
- IR remote control.


Specifications:
Overall heating capacity 18,5 kW
Rated heating capacity 4,0 min - 16,5 max kW
Efficency 90 - 92 %
Hourly consumption 0,9 min - 3,6 max kg/h
Approximate volume heated 400 mc
Tank capacity ~ 30 kg
Uptime with min settings 33 h circa
Uptime with max settings 8 h circa
Flue outlet diam. 80 mm
Air intake diam. 42 mm
Water tank 24 L
Electric consumption 140 min - 420 max W
Max. operating temperature 80 °C
Max. operating pressure 2 bar
Hydraulic connections (out - in) 1/1” G Male
Hydraulic connections (supply - withdrawal ACS) 1/2” G Male
Dimensions w x h x d 535 x 1085 x 525 mm
Weight 150 kg
