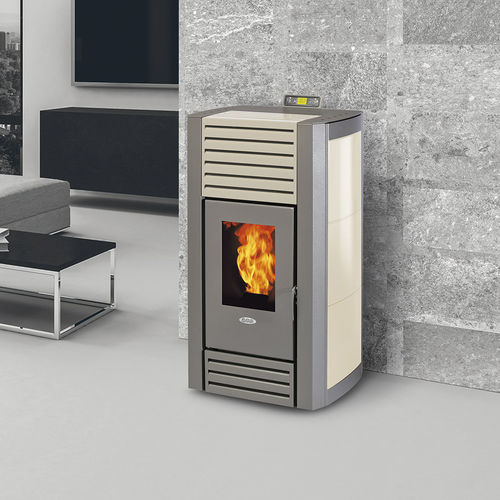

Pellet boiler stove HC25A
steelcontemporaryventilated

pellet boiler stove
pellet boiler stove
pellet boiler stove
pellet boiler stove
pellet boiler stove
Add to favorites
Compare this product

Characteristics

Power source
pellet
Material
steel
Style
contemporary
Other characteristics
ventilated

Description

Technical features: - Weekly programmer with 4 ON and 4 OFF daily time settings; - Ready for connection with external thermostat; - Steel sides with majolica inserts; - Stand-by or modulation function; - Integrated environment thermostat; - Steel combustion chamber; - Cast iron brazier (ventilated cleaning); - Serial interface for technical user. Optionals: - GSM Kit, for SMS remote control; - FUMES Kit, additional flue; - HYDRO Kit, for domestic hot water; - IR remote control. Specifications: Overall heating capacity 24,9 kW Rated heating capacity 7 min - 22 max kW Water thermal power 4,5 min - 18 max kW Air thermal power 2,5 min - 4 max kW Efficency 91 - 94 % Hourly consumption 1,6 min - 4,7max kg/h Approximate volume heated 540 mc Tank capacity ~ 30 kg Uptime with min settings 19 h circa Uptime with max settings 6 h circa Flue outlet diam. 80 mm Air intake diam. 42 mm Water tank 35 L Electric consumption 160 min - 420 max W Max. operating temperature 80 °C Max. operating pressure 2 bar Hydraulic connections (out - in) 1/1” G Male Hydraulic connections (supply - withdrawal ACS) 1/2” G Male Dimensions WxHxD 620 x 1150 x 515 mm Weight 190 kg
