Acrylic smoke vent FSP P2

tempered glasspinesmoke and heat extractor

Overview
The FSP P2 smoke ventilation window is designed for building smoke extraction systems to remove smoke and heat during fire emergencies. Under normal conditions it also serves as a roof window for natural ventilation and daylight. Its construction and finish make it suitable for stairwells and other spaces with verified smoke extraction requirements.

Main features

• Smoke extraction in case of fire and daily ventilation
• Two 24V electric actuators for automatic opening (fast, stable lifting)
• Suitable for pitched roofs with slopes from 20° to 60°; applicable to flat roofs with dedicated installation solutions
• Anti-burglary glazing unit: P2A class

Design for demanding conditions

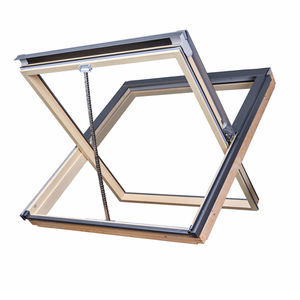

The sash is lifted by two electric actuators and reaches up to 71° opening in approximately 51 seconds under full load. Bottom hinges provide optimal aerodynamic behaviour and the open sash shields the vent opening from wind. The structure complies with EN 12101-2:2003 and is approved for natural smoke extraction systems.

Glazing unit
The window is fitted with a P2A class anti-burglary glazing unit. The inner laminated layer reduces shattering and retains fragments to limit unauthorised access. The outer pane is 4 mm tempered glass with a lifetime hail-resistance warranty. The glazing cavity is filled with argon inert gas.

External cladding
The exterior is fitted with weather-resistant cladding resistant to moisture, UV and temperature changes. Available colours: anthracite RAL 7016, grey-brown RAL 7022 and black RAL 9005. In combination with suitable flashings (including solutions for flat roofs) it ensures a watertight, durable connection to the roof structure.

Internal finish
The interior frame is made of vacuum-impregnated pinewood treated against fungi and mould and coated twice with clear acrylic varnish to protect against moisture and ageing. The finish provides a natural aesthetic look.

Actuators and operation
Equipped with two 24V actuators for automatic opening triggered by a control system. The mechanism is calibrated for fast, even and stable lifting under maximum load to ensure reliable operation in emergency conditions.

Accessories and system integration
Compatible with weather sensors, ventilation switches, remote control systems and other components to meet facility requirements. Special flashings are available for various roof types and installation methods.

Applications

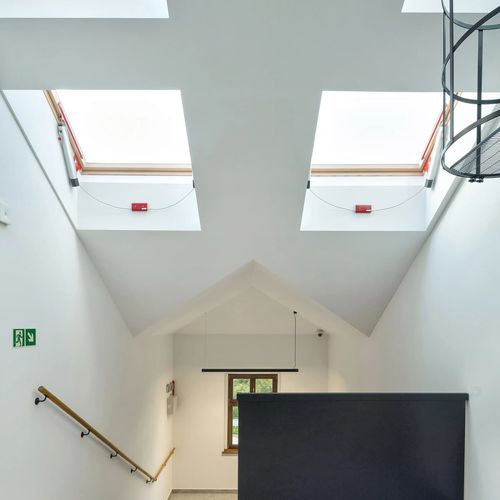

Primarily intended for smoke extraction systems in public and multi-storey buildings (stairwells, escape routes) while also usable for daily ventilation and daylighting.

Technical specifications

• Model: FSP P2
• Intended use: Smoke extraction (fire) and daily ventilation / roof window
• Standards: Complies with EN 12101-2:2003
• Opening mechanism: 2×24V electric actuators (automatic)
• Opening angle: up to 71°
• Opening time: ~51 seconds to full angle under full load
• Hinges location: bottom of frame
• Roof pitch suitability: pitched roofs 20°–60°; flat roofs with dedicated installation systems
• Glazing: P2A anti-burglary glazing unit; inner laminated layer; outer 4 mm tempered glass; argon-filled cavity
• External cladding: weather-resistant (colours: RAL 7016, RAL 7022, RAL 9005)
• Internal finish: vacuum-impregnated pinewood with two coats of clear acrylic varnish
• Warranty: outer tempered glass covered by lifetime hail-resistance warranty (as stated)
• Typical applications: stairwells and spaces requiring verified smoke extraction performance
• Optional components: weather sensors, ventilation switches, remote controls, special flashings
