Prefabricated dormer EDD-W

Overview

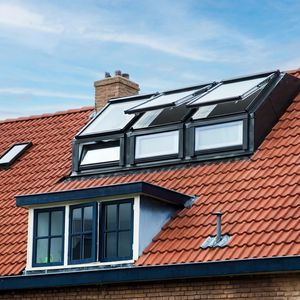

The EDD-W prefabricated dormer expands attic usability by adding natural light and usable floor area. It incorporates four roof windows (two lower, two upper) and is configured as standard for 78x118 cm windows, with options for 94x118 cm or 114x118 cm. The visible finish is RAL 7016.

Key benefits

• Large glazed area to increase natural light and interior comfort
• Extended structure increases functional floor space in the attic
• Contemporary dormer profile with sheet-metal upper finish for an aesthetic result
• Simple installation: no crane required; can be installed efficiently by a small team or one person
• Compatible with original FAKRO external and internal accessories for tailored appearance and function

Design and installation notes
The dormer is delivered as a durable prefabricated unit finished in RAL 7016. It is suitable for high-profile roof coverings (up to 90 mm or 120 mm). Standard components are provided for complete assembly; additional optional components are available to support drainage and thermal insulation.

Equipment and additional components

• Main components: Standard upper element, Standard lead apron, Standard middle element, Standard right side, Standard left side, Standard middle gutter, Frame side covering profiles (standard)
• Additional components (supplied / available): Water drainage gutter, Roof rails, Insulation wedges, Installation set, Hooks, Insulation kit XDP, Fitting instructions, Insulation foam

Durable structure / Appearance
The dormer complements the roofline with refined details; the upper section is finished with sheet metal to ensure a clean, modern appearance.

Technical specifications

• Model: EDD-W
• Flashing type: Thermo
• Roof covering compatibility: High profile up to 90 mm or 120 mm (H)
• Flashing size (W x H): 78x118 cm (commercial / installation size)
• Commercial size (W x H): 78x118 cm
• Installation size (W x H): 78x118 cm
• Apron material: Lead apron
• Main components included: Standard upper element; Standard lead apron; Standard middle element; Standard right side; Standard left side; Standard middle gutter; Frame side covering profiles (standard)
• Additional components (supplied / available): Water drainage gutter; Roof rails; Insulation wedges; Installation set; Hooks; Insulation kit XDP; Fitting instructions; Insulation foam
• Minimum roof pitch: 30°
• Maximum roof pitch: 70°
• Product code: 80AH06
• Product weight: 126.25 kg
• Packaging width: 1.357 m
• Packaging length: 2.629 m
• Packaging height: 0.774 m
• Standard finish colour: RAL 7016
