Dormer EDT-W

Dormer - EDT-W - FAKRO
Dormer - EDT-W - FAKRO
Dormer - EDT-W - FAKRO - image - 2
Dormer - EDT-W - FAKRO - image - 3
Dormer - EDT-W - FAKRO - image - 4
Dormer - EDT-W - FAKRO - image - 5
Dormer - EDT-W - FAKRO - image - 6
Add to favorites
Compare this product
Go to the FAKRO website for more information

Description

Overview

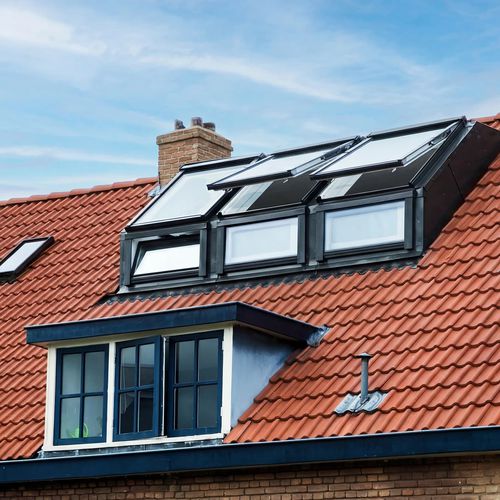

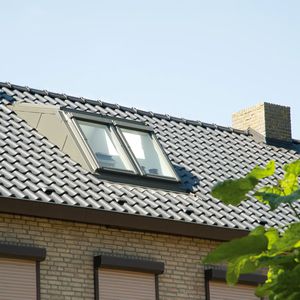

  • The prefabricated roof dormer EDT-W increases natural light penetration and usable attic space by accommodating up to six roof windows (three lower, three upper), creating an effect similar to a glazed façade. Finished in RAL 7016 for a contemporary exterior appearance.


Stable structure and quick installation
  • Lightweight, prefabricated modular structure designed for on-site assembly without a crane, reducing installation time and labour needs.
  • Compatible with roof pitches from 35° to 70°.
  • Constructed from durable, visually consistent materials and fully compatible with FAKRO internal and external accessories.


Key benefits
  • Enhanced interior daylighting — configurable with up to six roof windows for intense natural illumination.
  • Increased functional attic volume, allowing easier layout and free movement.
  • Simplified installation process using original FAKRO installation accessories.
  • Architectural finish that integrates with modern façades and improves building appearance.


Equipment compatibility
  • Fully compatible with FAKRO accessories (internal and external blinds, aprons, installation kits, etc.).
  • Standard included components: standard upper element; standard lead apron; standard middle element; standard right side; standard left side; standard middle gutter; frame side covering profiles (standard).
  • Optional/additional components: water drainage gutter; roof rails; insulation wedges; installation set; hooks; insulation kit XDP; fitting instructions; insulation foam.


Notes
  • When installed, the prefabricated dormer transforms the attic character, improving interior comfort and architectural harmony.
  • Finish colour: RAL 7016.


Technical specifications
  • Model / Trade name: EDT-W
  • Brand: FAKRO
  • Flashing type: Thermo
  • Flashing application: For roof window
  • Roof covering compatibility: High profile up to 90 mm or 120 mm (H)
  • Apron material: Lead apron
  • Selected size (commercial/installation): 78×118 cm
  • Main components: Standard upper element; Standard lead apron; Standard middle element; Standard right side; Standard left side; Standard middle gutter; Frame side covering profiles (standard)
  • Additional components: Water drainage gutter; Roof rails; Insulation wedges; Installation set; Hooks; Insulation kit XDP; Fitting instructions; Insulation foam
  • Suitable roof pitch: Min. 35° — Max. 70°
  • Maximum roof covering profile height: 90 (profile height units as per product documentation)
  • Window installation depth: V
  • Product weight: 202 kg
  • Packaging dimensions (approx.): width 1.2 m; length 3.295 m; height 0.59 m
  • Product code (logistics): 80AN06
