Flashing flashing EHA-P

for windowfor sloping roofsfor roofs

Overview

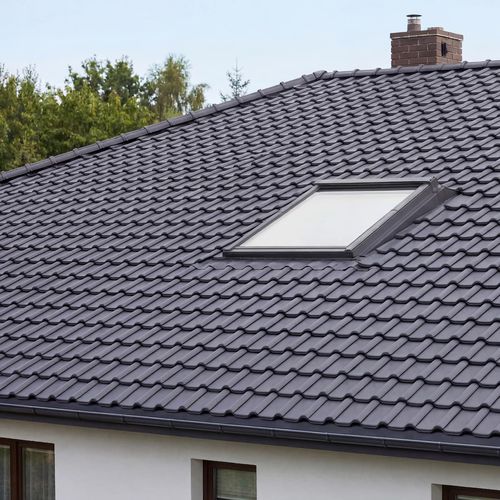

The EHA-P flashing is a roof-window flashing system designed for low-pitch roofs (from 10°). It provides a watertight connection between the window and high-profile roofing materials (up to 90 mm profile height) and increases the installation angle by 10° via special brackets. Supplied with a lead apron, the system is available in three colours: anthracite (RAL 7016), grey-brown (RAL 7022) and black (RAL 9005).

Assistance with installation
The EHA-P is quick to fit and compatible with high-profile roofing. Components attach directly to the window and to the roofing profile; special brackets allow the installation angle to be raised by 10°, improving interior daylighting and roof functionality. The flashing is supplied for single windows; modular versions for combinations are available on request. Suitable roof pitches: 10°–75°.

Features

• For low-pitch roofs: suitable from 10° to 75° pitch.
• Increases installation angle by 10° using special brackets.
• Compatible with high-profile roofing up to 90 mm profile height (option noted for H up to 120 mm).
• Delivered with lead apron for durable, aesthetic junction.
• Available colours: anthracite (RAL 7016), grey-brown (RAL 7022), black (RAL 9005).
• Modular construction: lower, upper and side elements plus frame side covering profiles; lower element bonded with plastic compound for tight adhesion.
• Factory-applied sealing wedges protect against dust, leaves and snow.
• Integrated condensation drainage gutter to channel moisture outside the window opening.
• Manufactured from coated aluminium sheet with high weather resistance.

Equipment and accessories

• Main components: standard upper element; standard lead apron; standard right side; standard left side; frame side covering profiles.
• Optional/additional components: water drainage gutter; roof rails; insulation wedges; installation set; hooks; fitting instructions.

Installation depths

• Available installation depths: V (standard / 0), N (+3 cm on request) and J (−3 cm on request).
• Window installation method: window installed on brackets above the roof structure.

Notes
Modular versions for combination windows are available on request to adapt the flashing to multi-window assemblies instead of a single window.

Technical specifications

• Product name: EHA-P
• Type: Standard flashing for roof windows
• Roof covering compatibility: High-profile roofing up to 90 mm (option H up to 120 mm noted)
• Flashing size (W x H) — commercial / installation size: 24 x 38 cm
• Apron material: Lead apron
• Main components: Standard upper element; Standard lead apron; Standard right side; Standard left side; Frame side covering profiles
• Additional components: Water drainage gutter; Roof rails; Insulation wedges; Installation set; Hooks; Fitting instructions
• Window installation depth options: V (0) standard; N (+3 cm) on request; J (−3 cm) on request
• Maximum roof covering profile height: 90 mm
• Minimum roof pitch: 10°
• Maximum roof pitch: 75°
• Material: Coated aluminium sheet (weather resistant)
• Product code: 69857
• Product weight: 6 kg
• Packaging dimensions (W x L x H): 0.407 m x 1.2 m x 0.135 m
