Sloping roof flashing EUV -B _X00

for roofsfor flashing

Product summary

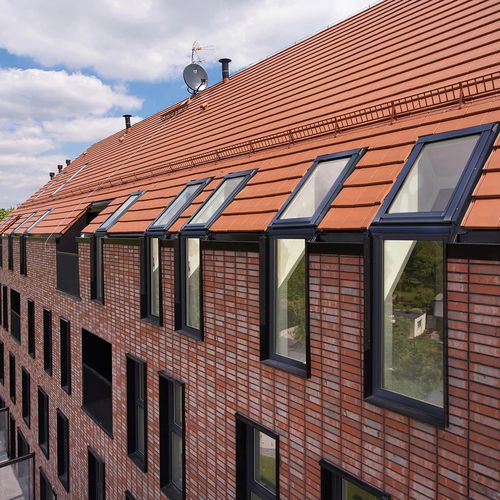

The EUV‑B _X00 flashing is a specialised solution for L-shaped combinations that connects a roof window with a vertical window in a knee wall. It forms a watertight, visually cohesive junction, managing water drainage and wind exposure. Compatible with roof pitches between 15° and 55° and offered in three colours: anthracite (RAL 7016), grey‑brown (RAL 7022) and black (RAL 9005).

Installation & compatibility
The EUV‑B _X00 is designed for straightforward installation: components are matched to FAKRO roof windows and L-shaped combination windows to ensure a durable, weatherproof joint when installed according to instructions. The system supports a wide range of roof coverings including flat membranes, profiled sheets and high‑profile roofing.

System components and design

• Set includes: flashing elements for the roof window, connecting gutter between roof and vertical window, 120 cm eaves flashing and frame side covering profiles.
• Integrated drainage gutter directs moisture away from glazing and junctions.
• Ensures a durable transition between the roof plane and the vertical section to protect against water ingress and wind.
• Available in standard (for single combinations) and modular versions (for horizontal combinations).

Materials & performance

• Manufactured from coated aluminium sheet for long-term weather resistance.
• Protects against rain, snow and wind while preserving a uniform roof appearance.

Colours

• Anthracite (RAL 7016)
• Grey‑brown (RAL 7022)
• Black (RAL 9005)

Technical specifications

• Model: EUV -B _X00
• Brand: FAKRO
• Type: Standard flashing for L-shaped combinations
• Flashing application: For L-shaped combination
• Roof covering compatibility: high profile up to 90 mm or 120 mm (H)
• Installation depths available: N (+3 cm), V (0) (standard), J (–3 cm) — standard V
• Flashing size (W x H): 55 x 78 cm
• Apron: none (standard)
• Main components: upper element, lead apron, right side, left side, frame side covering profiles, middle element
• Additional components: drainage gutter, roof rails, insulation wedges, installation set, hooks, fitting instructions, eaves element
• Standard window installation depth: V
• Minimum roof pitch: 15°
• Recommended installation range: 15°–55° (maximum structural range up to 90°)
• Weight: 6.22 kg
• Packaging (W x L x H): 0.39 m x 1.55 m x 0.155 m
• Product code: 886U01
• Items per pallet: 6 pcs.
