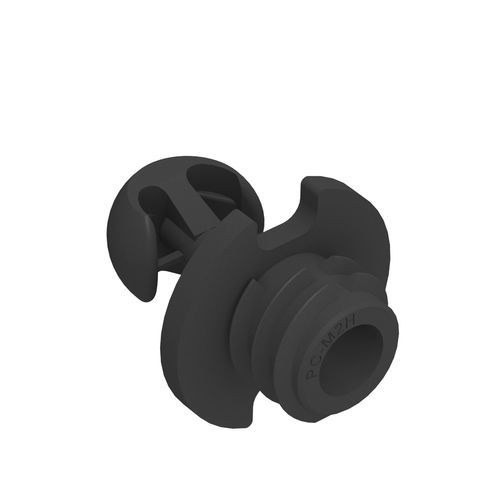

Plastic fastening system PC-M2H

for panels

Male self tapping heavy duty clip for thick panels with increased loading. Mounts into PC-F1A, PC-SF1, PC-RF1 and PC-AF1. 10 kg pull out load per clip. Minimum panel thickness 9mm. Screws into 10mm hole with CT-10. The heavy duty self tapping clip, PC-M2H adds to the standard range. Specifically designed for thicker panels with increased loading requirements, where PC-M1B is not strong enough. The Standard Range offers hidden panel mounting solutions for a variety of applications, and includes self-tapping, screw and adhesive fix options. Pull-out loads vary from 5-15kg, depending on the male clip used. The Standard Range is ideal for mounting wall and ceiling panels where the standoff between frame and panel does not need to be kept to a minimum. Male and female clips are interchangeable within the range. Common uses: wall and ceiling panels, acoustic panels, prefabricated panels and seat backs.
