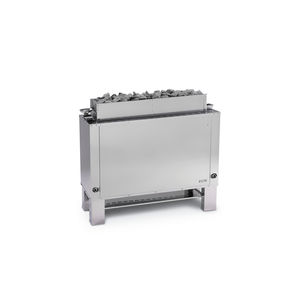

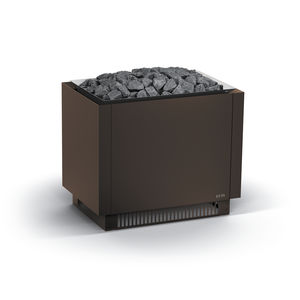

Electric sauna heater EOS 34.G HD

10 kW...20 kW20 kW...50 kWfree-standing

Product overview
High-performance sauna heater for intensive commercial sauna operation. Heavy-duty floor-standing model for the Finnish (dry) sauna. Designed for very intensive, demanding commercial use in large sauna cabins. Very robust and durable construction, completely made of stainless steel with reinforced 3-shell wall construction. Dust and water collecting tray at the bottom.

Design & features
The heater features a special design rock store placed above the heating elements on unique V-shape supports which ensure perfectly stable air convection. "Heavy-duty" version includes massive copper rails as internal wiring for particularly intensive commercial use. No contact between sauna stones and heating elements for improved heating performance and longer service life of heating elements. Innovative V-shape supports under the stone compartment prevent water flowing through after a water splash. Optimal relation between stone volume and air convection system for fast heat-up times and powerful water splashes.

Combi variant
The Combi variant is equipped with an integrated vaporizer. Combi includes a holder for herbs and oils, integrated dry-run protection with acoustic alarm and a 10 l water tank.

Optional

• Aroma tray

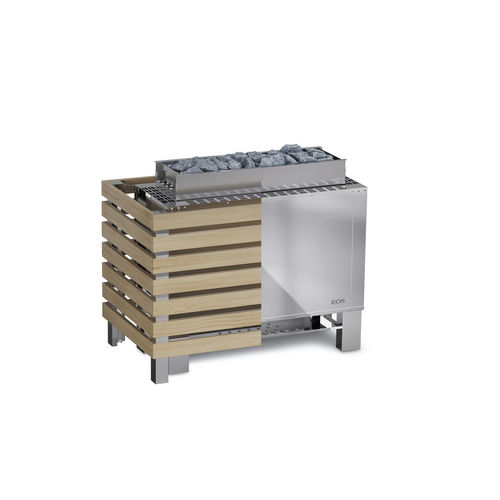

• Frame rack for heater guard rail (without wooden parts)
• EOSafe L safety system (optional)
• Optional stack/frame to increase rock store volume by 30 kg (mounting frame for cover protection guard additionally available)

Model sizes / Variants

• Size 1: 15 - 21 kW, 30 kg rock store volume
• Size 2: 24 - 36 kW, 45 kg rock store volume

Your advantages

• High performance sauna heater designed for very intensive commercial operation.
• Floor-standing model for large saunas up to 75 m³.
• Heavy-duty version with copper rails as standard inner wiring, suitable for particularly intensive use.
• Exceptionally robust and durable construction, completely stainless steel.
• Terminal box with ceramic terminals at the rear side.
• No contact between stones and heating elements for improved heating performance and longer element life.
• V-shape supports prevent water flowing through after water splash.
• Optimal relation between stone volume and air convection for fast heat-up and powerful water splashes.
• Additional 30 - 45 kg stone volume possible with optional frame (item references given on product page).

Technical specifications (summary)
Electrical connection: 400 V 3N ~ 50/60 Hz
Dimensions H / W / D (cm): 15 - 21 kW: 95 / 75 / 53; 24 - 36 kW: 95 / 100 / 53
Fuse protection control unit: 3 x 16 A
Stone filling (15 - 21 / 24 - 36 kW): 30 / 45 kg

Performance / Data (selected entries)
15.0 kW — Sauna cabin size: 18 - 25 m³ — Min. size of air inlet/outlet: 50 x 6 cm — Weight without rocks: 48 kg — Power extension required: PEB 10
18.0 kW — Sauna cabin size: 24 - 30 m³ — Min. inlet/outlet: 50 x 6 cm — Weight without rocks: 49 kg — Power extension required: PEB 10
21.0 kW — Sauna cabin size: 24 - 34 m³ — Min. inlet/outlet: 50 x 8 cm — Weight without rocks: 50 kg — Power extension required: PEB 18
24.0 kW — Sauna cabin size: 35 - 40 m³ — Min. inlet/outlet: 50 x 8 cm — Weight without rocks: 61.5 kg — Power extension required: PEB 18
27.0 kW — Sauna cabin size: 40 - 50 m³ — Min. inlet/outlet: 50 x 9 cm — Weight without rocks: 62.5 kg — Power extension required: PEB 18
30.0 kW — Sauna cabin size: 50 - 65 m³ — Min. inlet/outlet: 50 x 10 cm — Weight without rocks: 63.5 kg — Power extension required: PEB 36
36.0 kW — Sauna cabin size: 65 - 75 m³ — Min. inlet/outlet: 50 x 10 cm — Weight without rocks: 65.5 kg — Power extension required: PEB 36

Model overview (power / item numbers)
EOS 34.G HD — 15.0 kW (item no. 948097), 18.0 kW (948098), 21.0 kW (948099), 24.0 kW (947360), 27.0 kW (947361), 30.0 kW (947362), 36.0 kW (947363)
EOS 34.G Combi — 21.0 kW (942589), 24.0 kW (944079), 30.0 kW (943037)

Characteristics / Technical specifications

• Type: Floor-standing heavy-duty sauna heater (Finnish / dry sauna)
• Construction: Stainless steel, reinforced 3-shell wall
• Inner wiring (HD): Massive copper rails (standard for HD)
• Stone compartment: Rock store above heating elements on V-shape supports (no contact with elements)
• Combi: Integrated vaporizer (4 kW) with 10 l tank, herb/oil holder, dry-run protection with acoustic alarm
• Optional accessories: Aroma tray, frame rack for guard rail, stack frame to increase stone volume, cover protection guard mounting frame
• Suitable sauna cabin volumes: from 18 m³ up to 75 m³ depending on power variant
• Terminal box: Ceramic terminals at rear side
