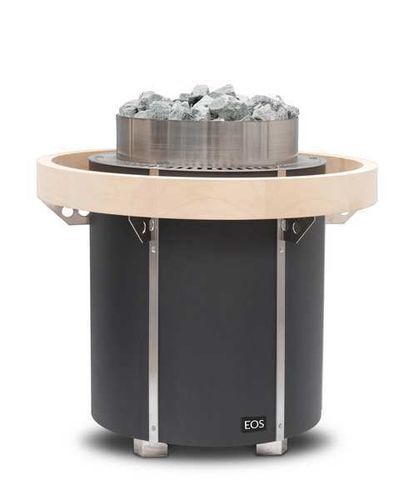

Electric sauna heater EOS ORBIT

10 kW...20 kW20 kW...50 kWfree-standing

Overview
Commercial floor-standing sauna heater designed for dry Finnish saunas and intensive commercial operation. Timeless round design with anthracite pearl-effect powder coating. Reinforced stainless steel construction and an invisible bottom cable connection allow installation in front of glass panels or centrally in the cabin. Stone compartment is separated from heating elements for improved serviceability and element lifespan. Rock store accepts approx. 40 kg stones.

Your advantages

• Designed for sauna cabins up to 40 m³ (commercial use).
• Suitable for intensive continuous commercial operation.
• Optional round guard rail (360° or 270°) in abachi or walnut wood for protection and aesthetic integration.
• Reinforced stainless steel body with optimized air convection for faster heat-up times.
• No direct contact between stones and heating elements to extend element life and improve heating performance.
• Concealed bottom cable connection enables installation near glass panels or central placement.
• Stone compartment capacity approx. 40 kg.

Technical specifications
Electrical connection: 400 V 3N ~ 50/60 Hz
Control unit fuse protection: 3 x 16 A
LSG unit fuse protection: 3 x 16 A / 3 x 35 A (only 21 and 24 kW)
Dimensions (W x H): 65.5 x 92 cm
Weight without stones: ~55 kg
Stone filling: 40 kg
Power extension required: PEB 10 / PEB 18 (only 21 and 24 kW)

Data
Power: 18.0 kW — recommended sauna cabin size: 24 - 30 m³ — Min. air inlet/outlet: 50 x 8 cm
Power: 21.0 kW — recommended sauna cabin size: 30 - 34 m³ — Min. air inlet/outlet: 50 x 8 cm
Power: 24.0 kW — recommended sauna cabin size: 35 - 40 m³ — Min. air inlet/outlet: 50 x 10 cm

Model overview
EOS Orbit 18.0 kW — Item no. 946421
EOS Orbit 21.0 kW — Item no. 946422
EOS Orbit 24.0 kW — Item no. 946423

Downloads (titles)
Technical data sheet
Installation and operating instruction
Declaration of Conformity

Specifications

• Brand: EOS
• Model: EOS Orbit
• Type: Floor-standing heavy-duty sauna heater for commercial operation
• Suitable for: Dry Finnish sauna cabins (commercial use)
• Power options: 18.0 kW, 21.0 kW, 24.0 kW
• Recommended sauna cabin sizes: 24–30 m³ (18 kW); 30–34 m³ (21 kW); 35–40 m³ (24 kW)
• Minimum air inlet/outlet sizes: 50 x 8 cm (18 & 21 kW); 50 x 10 cm (24 kW)
• Electrical connection: 400 V 3N ~ 50/60 Hz
• Control unit fuse protection: 3 x 16 A
• LSG unit fuse protection: 3 x 16 A / 3 x 35 A (only for 21 and 24 kW)
• Power extension required: PEB 10 / PEB 18 (only for 21 and 24 kW)
• Dimensions (W x H): 65.5 x 92 cm
• Weight without rocks: ~55 kg
• Stone filling capacity: 40 kg
• Construction: Reinforced stainless steel; stone compartment separated from heating elements; concealed bottom cable connection
• Optional accessories: Round-shaped guard rail (360° or 270°) in abachi or walnut wood
