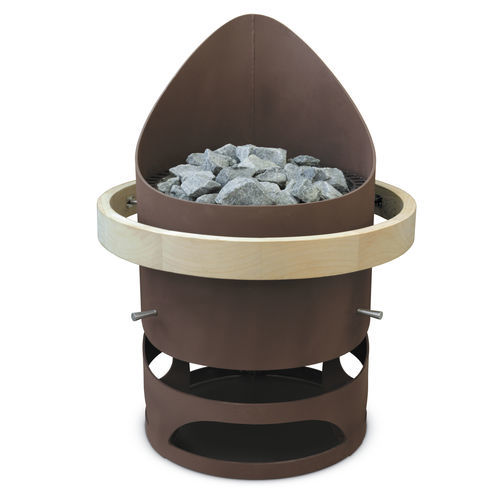

Electric sauna heater EOS ZEUS HD

20 kW...50 kWfree-standingsteel

Product overview
Floor-standing round sauna heater designed for intensive commercial operation in Finnish-style saunas. Reinforced steel casing with an approximate 60 kg rock store. Heavy-duty internal wiring with massive copper rails and an 8 mm steel wall. Finish options: red-brown Rust Marble (standard), matt black or anthracite pearl effect. Supplied with two connection cables with special heavy-duty plugs. Optional round protection rail available in 360° or 270°. Models 20–24 kW are supplied with safety slots; 30 and 36 kW models include a stone attachment frame. The EOS Zeus L HD variant provides an alternative design suitable for installation in front of glass panels or centrally in the sauna.

Model variants

• EOS Zeus HD (round floor-standing design)
• EOS Zeus L HD (alternative design for glass or central installations)

Your advantages

• Designed for sauna cabins up to 75 m³ (model-dependent)
• Suitable for very intensive commercial operation
• Round-shaped design with red-brown Rust Marble finish; high-precision laser-cut housing
• Also available in anthracite pearl effect or matt black
• Optional round safety guard rail in matching design; available in different wood types and in 270° or 360° (Ø 940 mm)
• Robust construction with a massive 8 mm steel wall
• Includes pre-mounted double-line connection cable with special heavy-duty connectors
• Extra-large rock store fits approx. 60 kg stones for powerful water splashes and temperature stability

Technical specifications

• Electrical connection: 400 V 3N ~ 50/60 Hz
• Dimensions (W x H): 70 x 125 cm (Zeus) / 70 x 79 cm (Zeus L)
• Weight without rocks: approx. 140 kg
• Stone filling / rock store: approx. 60 kg
• Internal wiring: massive copper rails (heavy-duty version)
• Construction: reinforced steel with 8 mm steel wall
• Finish options: red-brown Rust Marble, matt black, anthracite pearl effect
• Includes: 2 connection cables with special heavy-duty plugs
• Optional: round protection rail 360° or 270° (Ø 940 mm) in various wood types
• Safety / delivery notes: Models 20–24 kW supplied with safety slots; 30 and 36 kW include stone attachment frame
• Fuse protection (control unit): 3 x 16 A / 1 x 16 A (for 30 and 36 kW)
• Min. size of air inlet and outlet: 20–24 kW: 50 x 8 cm ~Ø 25–30 cm; 30–36 kW: 50 x 10 cm ~Ø 25–30 cm
• Power / LSG fuse / recommended sauna cabin size / power extension required: 20.0 kW — 3 x 25 A — 24–30 m³ — PEB 18; 24.0 kW — 3 x 35 A — 35–40 m³ — PEB 18; 30.0 kW — 3 x 50 A — 50–65 m³ — PEB 36; 36.0 kW — 3 x 63 A — 65–75 m³ — PEB 36
