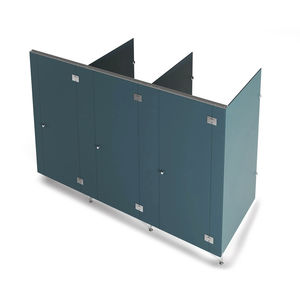

Public washroom toilet cubicle STUDIO T
HPLtempered glassstainless steel

public washroom toilet cubicle
public washroom toilet cubicle
public washroom toilet cubicle
public washroom toilet cubicle
Add to favorites
Compare this product


for public washroom
HPL, tempered glass, stainless steel, extruded aluminum
Other characteristics
for people with reduced mobility


• Partition walls fixed with two clamps to the back wall, foot on the ground, clamp to the upper structural pipe. • Doors equipped with pivoting opening system with automatic return, consisting of: foot fixed to the ground, shock-absorbing clamp fixed to the upper structural tube. • Horizontal tube for upper anchorage of partition walls and doors, with end supports fixed to the wall. Laminated tempered glass with PVB film, 5 + 5 mm thick, HST (Heat Soak Test) heat treatment, with rounded corners and beveled perimeter edges. HPL laminate, thickness 10 mm, classified as self-supporting panel with reaction to fire Euro class Bs1-d0 and formaldehyde release class E1, with rounded corners and bevelled edges. The specific structural hardware, entirely designed by Fit Interiors, is made of extruded or lathe machined aluminum. • Handle and vacant/occupied lock • Closing profile in stainless steel
