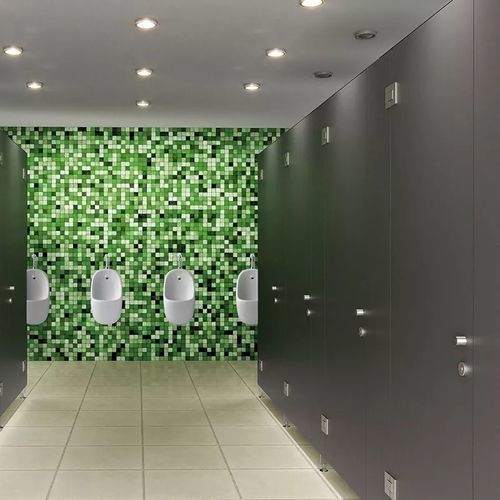

Modular system for toilet cubicle with doors and partitions in stratified HPL laminate.
• Partition wall fixed to the back wall through AISI 304 steel clamps and clamping screws
• Floor levelling foot, h 10 cm for suspended fixing
• Horizontal junction bar between modules
• Door mounted on AISI 304 steel adjustable hinges.
Doors and partitions in HPL
HPL laminate, thickness 10 mm, classified as self-supporting panel with reaction to fire Euro class Bs1-d0 and formaldehyde release
class E1, with rounded corners and bevelled edges
The specific structural hardware, entirely designed by fit interiors, is made of AISI 304 steel.
• Stainless steel knob and vacant/occupied lock
• Closing profile in stailess steel
