AC/DC power supply EXTECH DCP36 free-standingsingle-outputcommercial
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Installation
- free-standing
- Output
- single-output
- Applications
- commercial
- Other characteristics
- low-voltage, digital, programmable, single-phase, CE
- Output voltage
Min.: 0.5 V
Max.: 36 V
- Power
80 W
Description

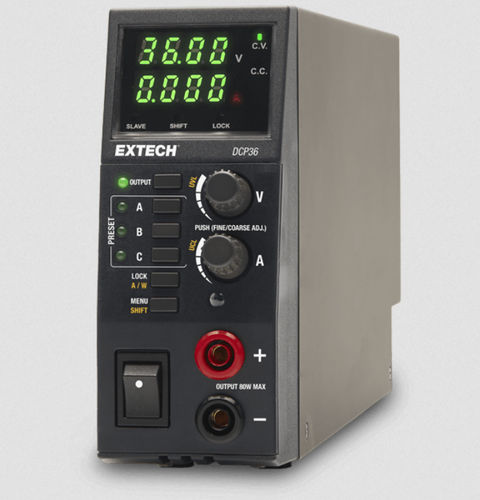

Extech’s DCP36 power supply has 80W constant power topology and has autoranging Voltage and Current output. This compact and lightweight unit provides easy portability, and is ideal for tight workbenches with limited space. It features 4-Digit LED displays, 3-programmable presets, front/rear output terminals, and remote sensing for accurate applied voltage at load point.
General
Line Current Regulation -
≤10mA
Line Voltage Regulation -
≤4mV
Load Current Regulation -
≤10mA
Load Voltage Regulation -
≤30mV
Output Current -
0 to 5A; Autoranging with 80W maximum output power (E x I = ≤80W)
Output Current Basic Accuracy -
±(0.5% + 5 counts)
Output Voltage -
0.5 to 36V
Output Voltage Basic Accuracy -
±(0.5% + 5 counts)
Ripple and Noise -
≤35m Vp-p
Additional Details
Certifications -
CE
Dimensions -
13 × 5 × 2" (330 × 127 × 53.5 mm)
Warranty -
2 years
Weight -
4.2 lbs (1.9 kg)
