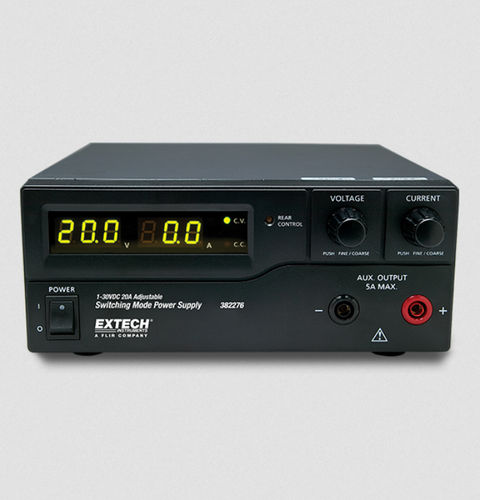

DC power supply EXTECH 382276 mobilesingle-outputcommercial
Add to favorites
Compare this product
Characteristics
- Type
- DC
- Installation
- mobile
- Output
- single-output
- Applications
- commercial
- Other characteristics
- digital, adapter, single-phase, switching
- Input voltage
230 V
- Output voltage
Max.: 30 V
Min.: 1 V
- Current
Max.: 20 A
Min.: 1 A
- Power
600 W
Description
382276 is a Switching Mode DC Power Supply has an adjustable output of 0 to 30V/ 20A with two user-defined presets and one 13.8V/20A factory preset. Power supply features dual LED displays, high RFI immunity, excellent EMI, and a Thermostatic Control Fan. Additional features include over-voltage, over-temperature, and short circuit protection. Operates at 220V, 50/60Hz and comes complete with AC power cord.
General
Line Current Regulation -
50mA min
Line Voltage Regulation -
20mV
Load Current Regulation -
100mA min
Load Voltage Regulation -
50mV
Output Current -
1 to 20A
Output Current Basic Accuracy -
±(0.5% of reading + 2 digits)
Output Current Max Resolution -
100mA
Output Voltage -
1 to 30V
Output Voltage Basic Accuracy -
±(0.5% of reading + 2 digits)
Output Voltage Max Resolution -
100mV
Ripple and Noise -
<5mVrms
