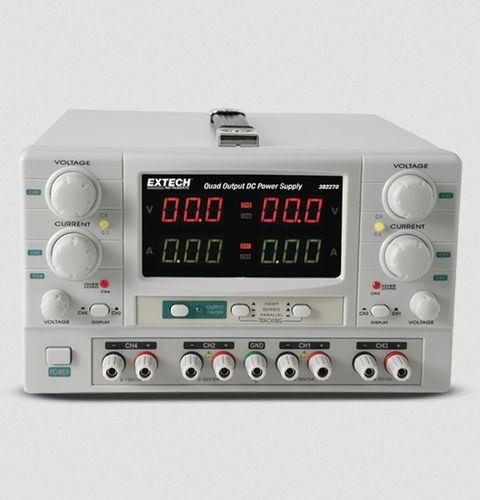

DC power supply EXTECH 382270 floor-mountedsingle-outputcommercial
Add to favorites
Compare this product
Characteristics
- Type
- DC
- Installation
- floor-mounted
- Output
- single-output
- Applications
- commercial
- Other characteristics
- digital, adapter, single-phase, switching
- Input voltage
Min.: 110 V
Max.: 240 V
- Output voltage
Min.: 0 V
Max.: 30 V
- Current
Min.: 0 A
Max.: 5 A
Description
382270 is a Quad Output DC Power Supply has two 0 to 30V/0 to 5A outputs plus two fixed auxiliary outputs of 3 to 6.5V/3A and 15V/1A. The two 30V outputs can be combined in parallel for 10A or in series for 60V. Comes complete with 4 pairs of test leads (banana plug to alligator clip) and an AC cord.
General
Line Current Regulation -
2mA ±3mA
Line Voltage Regulation -
0.1mV ±3mV
Load Current Regulation -
2mA ±5mA
Load Voltage Regulation -
0.5mV ±3mV
Output Current -
0 to 5A, 0 to 5A, 3A (fixed), 1A (fixed)
Output Voltage -
0 to 30V, 0 to 30V, 3 to 6.5V, 8 to 15V
Ripple and Noise -
<0.5mVrms
Additional Details
Dimensions -
10.2 × 6.3 ×14.5" (260 x 160 × 370mm)
Power -
110 to 240VAC, 50/60Hz
Warranty -
2 years
Weight -
26.5lbs (12kg)
