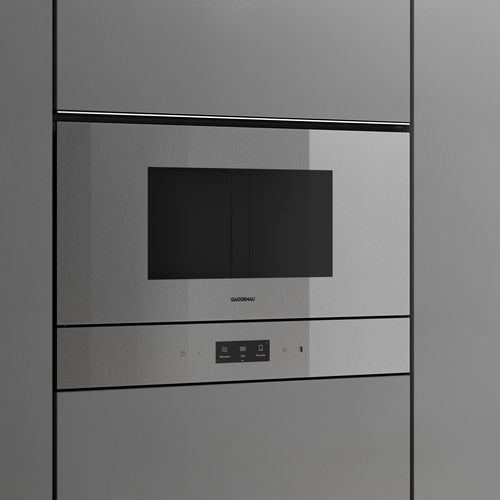

Electric oven GM220130

microwavebuilt-insingle

Overview
The Gaggenau Minimalistic series microwave oven with side-hinged door (right) offers integrated microwave and grill functionality in a handleless, full-glass design. Key benefits include automatic programmes with weight input, an eco-conscious cleaning aid, flexible cabinet installation options, a full touch display and a grill combination for fast heating and professional finishing.

Top features

• Automatic programmes: select programme and enter weight; appliance adjusts power and time and stops automatically.
• Eco-conscious cleaning aid: softens residues for easy wipe-off and reduced cleaning effort.
• Flexible cabinet integration: adjustable feet for tall cupboards or installation in wall-hanging cupboards.
• Full touch display with intuitive operation and easy selectable options.
• Grill combination: microwave and full-surface grill can be combined for rapid heating with grilled finish.
• Handleless side-hinged door with electronic door opening.

Heating methods / Programmes

• Microwave operation with 6 output levels: 900 W (max), 600 W, 450 W, 360 W, 180 W, 90 W.
• Full-surface grill with 3 intensity levels; maximum grill output 1300 W.
• Combination options: full-surface grill with microwave output levels 360 W, 180 W and 90 W combinable.
• 10 automatic programmes with weight indication: 3 defrosting programmes, 4 cooking programmes, 3 combination programmes.
• Option to save up to 10 favourites via Gaggenau Home Connect.

Handling

• Side-opening door opens up to 95° angle.
• Electronic door opening and touch display operation.
• 42 display languages available; info texts for additional information.

Features

• Innowave (inverter technology) for uniform microwave output.
• Timer functions: cooking time, cooking time end, count-up timer.

Selected digital services (Gaggenau Home Connect)

• Remote control and monitoring.
• Software updates.

Safety

• Child lock to prevent accidental operation.
• Safety shut-off.
• Thermally insulated door with double glazing.
• Cooled housing with temperature protection.

Cleaning

• Hygienic stainless steel interior with heat-resistant glass base.
• Dedicated cleaning aid programme to simplify maintenance.

Planning notes

• Plan the niche without back wall.
• Door hinge not reversible (right hinge only).
• Minimum installation height: 85 cm (top edge of niche bottom).
• Height-adjustable feet.
• Protrusion from appliance front to furniture cabinet: 21 mm.
• Installation above an oven possible with standard furniture shelf or intermediate shelf GA 601 010.
• For corner solutions, allow minimum distance to side wall due to side-opening door.

Connection

• Total connected load: 2.05 kW.
• Connection cable: 1.75 m, pluggable.

Technical specifications

• Model: GM220130
• Net volume: 21 litres
• Microwave output levels: 900 / 600 / 450 / 360 / 180 / 90 W
• Grill output (max): 1300 W; 3 intensity levels
• 10 automatic programmes (3 defrost / 4 cooking / 3 combination)
• Innowave inverter technology
• Full touch display; electronic door opening; handleless full glass door
• Side-hinged door opens to 95°; door hinge not reversible
• Total connected load: 2.05 kW; 1.75 m pluggable cable
• Hygienic stainless steel interior; heat-resistant glass base; cleaning aid programme
