Construction site freight elevator 300 Z

building

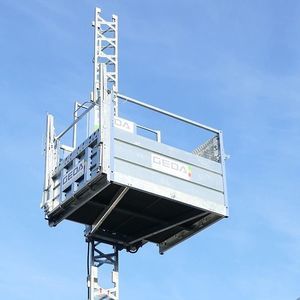

Whether scaffolding elements, tools or other construction materials: The GEDA 300 Z is the compact and robust partner for efficient material transport at construction sites. The lightweight 2-m aluminium mast elements can be assembled by one person. The convenient loading and unloading ramp ensures comfortable access to the platform, which is approved for transporting up to 300 kg. Once at the landing level, the car of the GEDA 300 Z, which can be swivelled by 90 degrees, allows a safe transition and comfortable loading and unloading. The GEDA 300 Z is available in a 230 V or a 400 V version and can therefore be adapted ideally to the power supply at the construction site. Swivel platform Swivel operation eliminates dangerous gaps at the unloading point and facilitates loading and unloading. GEDA POWER GREASE The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges. Cargo - Material Mast system - GEDA ALU-MAST Load capacity (material) - 300 kg Lifting height - 100 m Lifting speed - 30 m/min Power supply - 2.5 kW / 400 V / 50 Hz / 16 A Platform dimension - 0.75 m x 1.4 m x 1.1 m / 1.8 m
