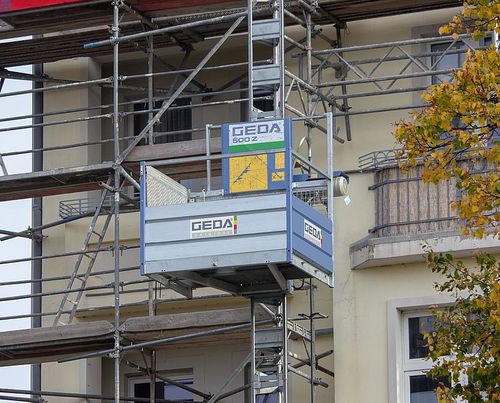

Construction site freight elevator 500 Z

building

Thanks to its robust design, the GEDA 500 Z braves the often rough conditions at construction sites and has proven itself as a reliable transport helper over many years. With its spacious platform, the powerful material hoist offers sufficient space for heavy, bulky construction materials up to a weight of 500 kg, and moves its freight up to 100 m height at 30 m/min. The platform of the GEDA 500 Z can be swivelled by 90 degrees, which allows safe and comfortable loading and unloading at the respective landing levels. At the ground station, items can be loaded parallel to the building, which saves space. A patented single-axle trailer for transport and for automatic set-down and loading of the hoist is available from the accessories range. GEDA UNI-X-MAST System An ingenious system: can be used on all GEDA rack and pinion hoists from 300 kg to 2,200 kg load capacity. GEDA POWER GREASE The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges. Cargo - Material Mast system - GEDA UNI-X-MAST Load capacity (material) - 500 kg Lifting height - 100 m Lifting speed - 30 m/min Power supply - 5.5 kW / 400 V / 50 Hz / 16 A Platform dimension - 1.4 m x 1.6 m x 1.1 m / 1.8 m
