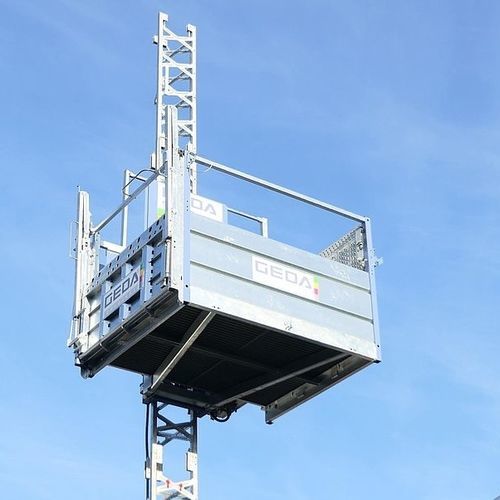

Construction site freight elevator 500 Z F

Powerful and efficient—at low and great lifting heights: The GEDA 500 Z F combines the advantages of a compact material hoist with the flexible operation possibilities of a free-standing construction hoist. The convenient move-through platform and the ability to operate without anchors up to heights of 9.5 m allow the GEDA 500 Z F to be optimally adjusted to the conditions on the respective construction site. GEDA UNI-X-MAST System An ingenious system: can be used on all GEDA rack and pinion hoists from 300 kg to 2,200 kg load capacity. GEDA Corrosion Protection The new GEDA all-round protection provides protection from corrosion and its consequential damage, maintains the functionality of components and extends their operating life. GEDA POWER GREASE The GEDA POWER GREASE range comprises four lubricants which cover all GEDA machine types, applications and temperature ranges. Cargo - Material Mast system - GEDA UNI-X-MAST Load capacity (material) - 500 kg Lifting height - 100 m Lifting speed - 24 m/min Power supply - 5.5 kW / 400 V / 50 Hz / 16 A Platform dimension - 1.4 m x 1.6 m x 1.1 m / 1.8 m
