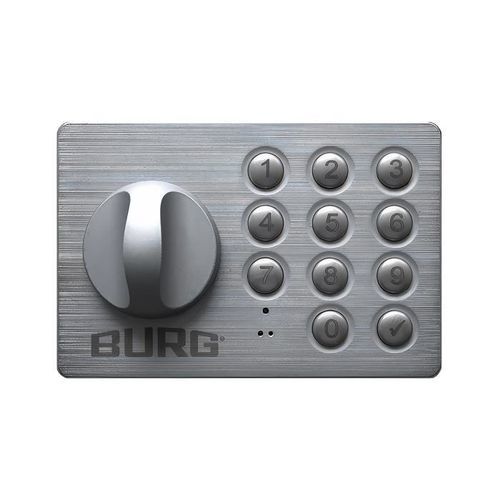

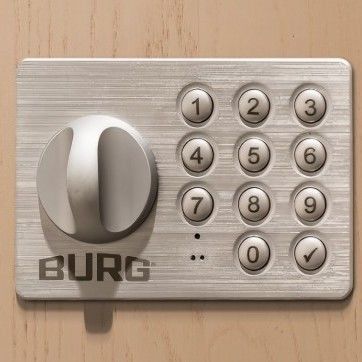

Electronic lock COMBIPAD

combinationRFIDdoor

COMBIPAD is an electronic locking solution designed for lockers and doors, offering keypad or contactless RFID operation in a Zamak metal housing. It is available in multi-user (shared) or assigned modes and can be supplied with an optional RTC (Real Time Clock) for time-based scheduling.

General features

• Numeric electronic keypad or contactless RFID operation.
• Master/pass-through electronic access for manager control.

Design, modes and RTC
COMBIPAD is manufactured with a Zamak housing and laser-engraved keypad digits for long-term legibility. It supports shared (multi-user) and dedicated (assigned) configurations to suit public or private installations. The optional RTC version enables time-dependent functions such as scheduled unlocking of locker banks or time-restricted access.

Version RTC — key capabilities

• Real-time clock for precise scheduling.
• Configurable unlock/lock times, adjustable lock duration and time-window management.

Technical specifications

• Zamak metal housing with stainless-steel keys.
• Numeric pad with laser-engraved digits.
• Compatible with wooden and metal doors.
• Locking activated by pushing on the door (no external handle required).
• Battery life: up to 60,000 locking cycles (2 × 3 V lithium batteries, CR123A).
• Lock status indicated by LED.
• Ergonomic rotary knob for operation.
• Simple configuration and programming for site managers.
• Designed for long service life and reduced waste.
