Door cam latch FLEXO

for access controlwirelesskeyless

The FLEXO is an electronic cam lock designed to replace a standard mechanical cam lock. Available in two variants (keypad and RFID), it can be flush-mounted or surface-mounted and is suitable for a wide range of installation contexts.

Key features

• Two models: keypad (code) and RFID (contactless).
• Master code for administration-level management.
• External battery access for replacement without dismantling the lock.
• Adjustable cam with 90° positions and minimal front-face depth (15 mm when flush-mounted).
• Easy retrofit installation as a direct replacement for mechanical cam locks.

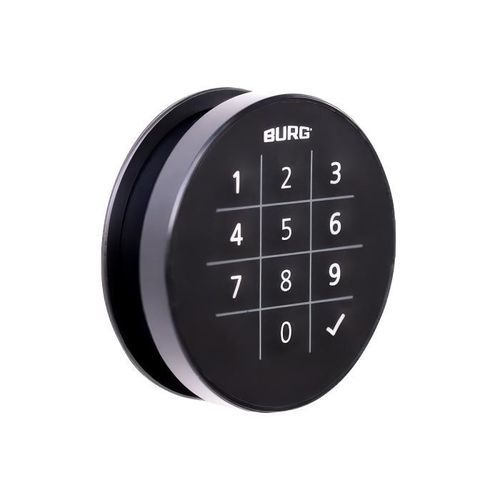

FLEXO keypad

• High-security code system with up to 999,999 code variations.
• Individual time control and adjustable locking duration.
• High-quality keypad with haptic feedback.
• Battery life: approx. 30,000 locking cycles (approx. 3–5 years depending on use).

FLEXO RFID

• Compatibility with major RFID standards: MIFARE® Classic 1K and MIFARE® Desfire EV II.
• Three authorization levels: master, manager, user.
• Private mode allows assignment of up to 10 user cards.
• Battery life: approx. 25,000 locking cycles (approx. 3 years).

Installation and maintenance

• Flush or surface mounting; designed for straightforward replacement of mechanical cam locks.
• External battery access enables battery change without removing the lock.
• Adjustable cam (90° steps) for alignment with existing hardware.
• Minimal front-face depth of 15 mm when flush-mounted.

Technical documentation
Technical datasheet available (PDF).
