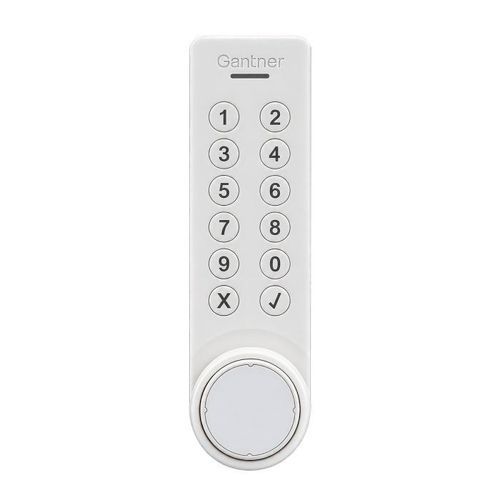

Electronic lock GL7p

combinationRFIDfor locker

Overview
GL7p is a standalone electronic locker lock designed to modernize existing locker furniture. Available with or without a PIN keypad, it provides a multi-use solution for free, shared or assigned access.

General features

• Numeric electronic keypad or contactless RFID identification
• Manager settings via mobile application

Usage modes

• Public mode
• Universal public mode
• Public mode with unique identifier
• Private mode with PROGRAM data support
• Private mode with expiration date

Identification and operation
The GL7p can be used with an RFID credential or PIN code entry. For RFID, the user presents the credential to the push button to wake the lock and read the identifier. For PIN entry, the user enters the code and confirms with the ✓ key or the front push button. Using a PIN removes the need for an RFID credential. An adjustable auto-open function can unlock the GL7p at a preset time or after a delay following locking. Lockers configured in Public mode can restrict use to a defined period.

Technical data
Dimensions: 140 mm x 37.7 mm x 43.4 mm
Power: 1 x 3.6 V lithium battery, size AA
Installation: vertical and horizontal
Battery change: from outside (no disassembly)
Lock mechanism: motorized locking
Operating temperature: -20 °C to +60 °C

Technical documentation
Datasheet available in PDF format (GL7p product sheet).

Specifications

• Suitable for almost all locker materials, including single-wall metal doors; fully wireless, no wiring required
• Opening methods: PIN code (keypad) and RFID smart card
• Available with or without PIN keypad; options can be combined
• Keypad supports four PIN codes for enhanced security
• Encrypted communications between card and lock
• Option for custom printing of the push button
• Easy installation: replaces existing locks and fits various doors
• Simple maintenance: only batteries need replacing
• Intuitive use: open by pressing the button; status indicated by push button position
• Integrated multi-application RFID compatible with common smartcards
• Dimensions: 140 mm x 37.7 mm x 43.4 mm
• Power: 1 x 3.6 V lithium AA battery
• Installation: vertical and horizontal
• External battery replacement (no disassembly)
• Motorized locking mechanism
• Operating temperature: -20 °C to +60 °C
