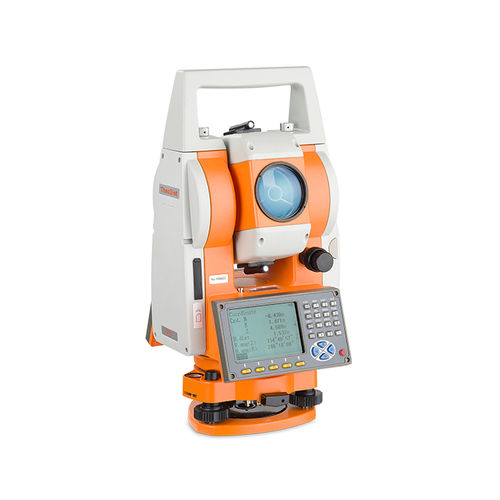

Reflectorless total station THEODIST® FTD 02

with prism

The geo-FENNEL TheoDist® is designed to be user- friendly and quick to set up on any construction site. Easy to handle, robust, exact and reliable. The main features of the geo-FENNEL TheoDist® are: Measuring programs that provide efficient and easy solution for setting out Three-dimensional measurement of coordinates Menu driven software with intuitive structure to maximise productivity A visible laser pointer to improve targeting accuracy and allowing measurements to be taken without looking through the telescope Data can be uploaded and downloaded to a PC via the RS-232 connection or SD-Card (FTD 02) Measuring range of up to 300m (FTD 05: 200m) without reflector Quick and easy set-up with the integrated laser plummet The geo-FENNEL TheoDist® Series is equipped with a variety of programs from simple distance and angle measurement up to precise three-dimensional setting out. Missing Line Offset Remote elevation measurement Resection Integrated application programs for setting out office generated designs. Area The communication software supplied with the geo-FENNEL TheoDist® allows the user to save the data in various formats. The data files can be converted into DXF format making them suitable to be uploaded into CAD Software such as AutoCAD®. TECHNICAL DATA Telescope : Image : Erect Objective aperture : 45 mm Magnification : 30 x Field of view : 1° 30' Resolving power : 4'' Shortest focus distance : 1.5 m Distance measurement : Reflectorless : 300 m Reflective tape target : 600 m Single standard Prism : 5,000 m Accuracy : 2 mm + 2 ppm Offset : variable Measuring time :
