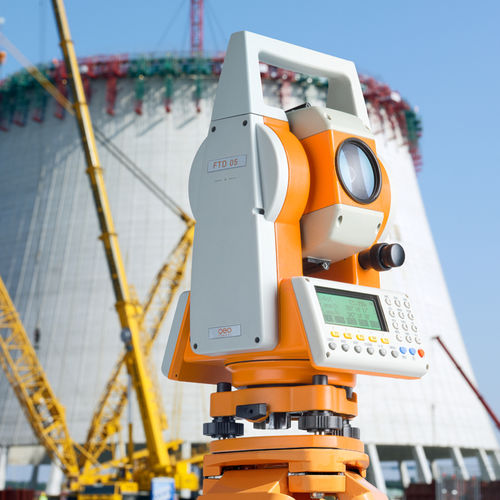

Reflectorless total station THEODIST® FTD 05

verticalhorizontal

The geo-FENNEL TheoDist® is an instrument designed to be easy to use and quick to set up on any construction site. Inexperienced users and professionals alike will benefit from the menu driven software with its intuitive structure and function keys improving productivity and saving valuable time. The principle features of the geo-FENNEL TheoDist® are: · Measuring programs that provide efficient and easy solutions for setting out. · Reflectorless measurement makes inaccessible target positioning a thing of the past. · Three-dimensional measurement of coordinates. · Menu driven software with intuitive structure to maximize productivity. · A visible laser pointer to improve targeting accuracy and allowing measurements to be taken without looking through the telescope. · Data can be uploaded and downloaded to a PC via the RS232 connection. · Quick and easy set-up with the integrated laser plummet. · Measuring range of up to 200 m without a refl ector and 600 m with a reflector. The geo-FENNEL TheoDist® is equipped with a variety of programs from simple distance and angle measurement up to precise three-dimensional setting out: Coordinate: Measuring and working in a three dimensional coordinate system. Missing Line: Calculation of the slope distance, horizontal distance and vertical height difference between two measured points. Offset: Calculates the distance and angle to a point you want to measure by positioning the target in front, behind or perpendicular to the line of sight. REM: Measures the height to an object by indirect measurement when a direct measurement is inaccessible.
