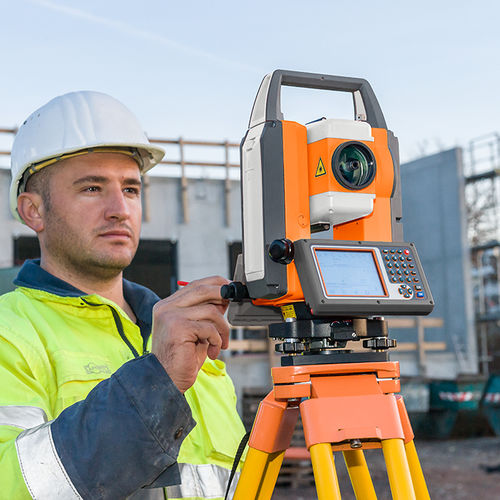

Reflectorless total station FTS 101

with prism

The geo-FENNEL Total Station FTS 101 / 102 is smart in its design and really easy to handle. It comes with the Windows CE based application software MicroSurvey FieldGenius or Carlson SurvCE optionally. Its touchscreen display greatly improves the workflow of accessing menus and software modes quickly and reliably. The FTS 101 / 102 features a full alphanumeric keypad as well as a “pop-up” keyboard which both ensure fast and accurate entering of data. In addition to the already supplied applications the FTS 101/102’s software package also supports road planing, volume calculation and simple CAD options to make the work in the field much easier. Measurements can be easily transferred into different formats to or from existing softwares like AutoCAD and similar. Due to its usability it is easily possible to measure and check points, stake-out lines, single points as well as setting up the instrument fastly and accurately. All features are smartly integrated in a compact and well designed instrument: Fast and long range EDM allows for measurements up to 3.500 m with standard prism and reflectorless up to 500 m. An integrated laser plummet allows a quick and accurate setup over measuring points also under difficult conditions. All total stations are equipped with the RS 96 stake out-aid from RS-Systems for fast and secure stake-outs. The FTS 101 / 102 measurements can be transferred by standard RS-232 cable but also by Bluetooth® or USB stick. Its two rechargeable Li-Ion batteries allow the use of the FTS 101 / 102 for even longer than one working day. All its connectors are well protected against dust and water which results in IP 55.
