The Platin XL flat rainwater tank was specially developed for rainwater harvesting. It is available in sizes 10,000 and 15,000 l.
Rotating tank dome to easily align the connecting lines
Available with a second tank dome as an option
Suitable for HGV loading up to a vehicle weight of 30 t (66138 lbs)
Flexible connection up to DN 300 (12")
Connection openings with prefitted DN 150 (6") lip seals
Tank height of just 125 cm (4' 1")
High-quality, integrated DN 150 (6") filter technology
Dome opening with stainless steel profile for precision fit and secure mounting
Connection fitting of up to DN 200 (8"), on tank dome of up to DN 300
The minimal installation depth saves you time and money during installation.
The tank can be partially or completely installed in groundwater. Please note the maximum immersion depths and necessary ground covers in the technical data.

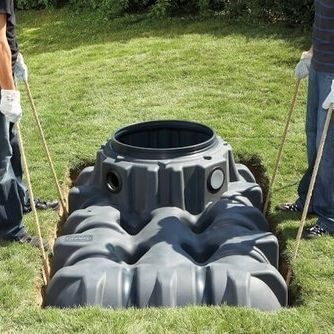

Tank installation made easy! The significantly lower weight of GRAF products compared to steel or concrete cisterns makes transport and installation easier.
The telescopic dome shafts are height-adjustable and can be tilted by 5 degrees. This makes it easy to adapt to the upper edge of the terrain.
The GRAF XXL tank can optionally be equipped with a second tank dome.
The ingress of seepage water can impair the water quality. Our tank and filter solutions are therefore sealed up to the top edge of the ground.
