High-density polyethylene (HDPE) oil separator ECOLOOP SAPHIR

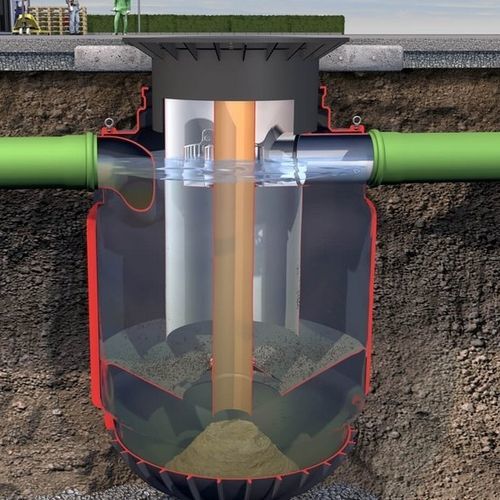

The EcoLoop Saphir is a hydrodynamic separator. The special inlet geometry reduces possible turbulence and thus ensures an optimized, tangential water inlet. Nature served as a model here. The specially shaped inlet and the division into several chambers ensure optimized settling behavior and reliable retention of filterable substances (AFS). This is also confirmed by laboratory tests conducted by the independent testing institute PIA Aachen. The EcoLoop can be used both for discharge into surface waters and upstream of a retention facility. Two-chamber system for optimized settling behavior Integrated flow separator prevents remobilization of sediments Effective sedimentation due to optimized, tangential inlet geometry Compact design, little space required Pre-assembled ready for installation No height offset between inlet and outlet Easy access for maintenance & cleaning Tested for retention of AFS63 Suitable for pre-treatment of precipitation water according to DWA-A 102 Truck-accessible cover in conjunction with load distribution plate
