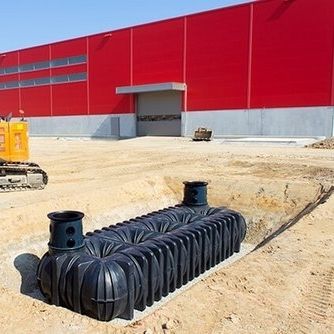

Water storage tank PLATIN XXL

undergroundplasticstainless steel

Delivery includes all firefighting water accessory parts to DIN 14230 Dome shaft allows easy access/ rescue from tank Individual tanks can be enlarged/ connected to create large volumes Fill with drinking water or rainwater Suitable for HGV loading up to 30 t (66138 lbs) (With cover suitable for lorry-bearing in combination with load distribution plate) Individual adjustment to ground level (earth covering/angle of slope) Low procurement costs Includes telescopic dome shaft suitable for lorry-bearing for customer to provide cover in accordance with DIN 3223 Dome opening with stainless steel profile for precision fit and secure mounting Scope of supply: Welded-in plastic intake pipe DN 125 (5") with flange, stainless steel strainer and anti-vortex plate, including stainless steel intake pipe extension piece DN 125 (5") with flange, firefighting water intake connection with rod fitting and a fixed coupling in accordance with DIN 14244, stainless steel ventilation chimney DN 110 (4") with hood and insect-proof screen for vertical installation, holder for sign "Firefighting Water Extraction Point" with stainless steel post in accordance with DIN 4066 (B2), access ladder incl. appropriate mounting kit for mounting in tank dome, HGV telescopic dome shaft for coverage on site in accordance with DIN 3223
