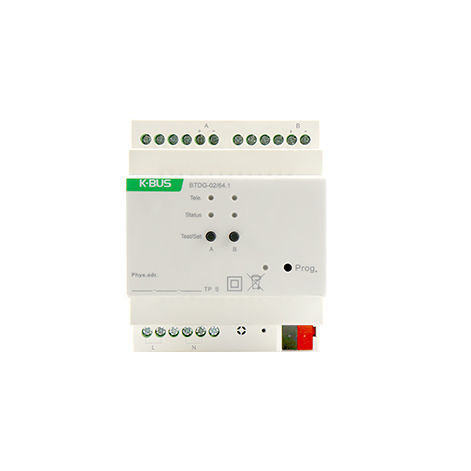

Gateway interface module BTDG-01/64.1

DIN railKNX

One or Two output channels 64 DALI devices per channel 16 DALI scenes control per channel 16 Groups control per channel Various status feedback, e.g. switch, brightness, operation hours etc. Fault detection of lamps and ballasts for DALI devices Monitoring DALI bus voltage, DALI bus current and DALI bus short circuit status Broadcast control Dimension 72×90×64mm Bus voltage 21-30V DC, Via KNX bus Bus current 0.1mA/30V DC Bus current 12.3mA/24V DC Auxiliary supply 100-240V AC（50/60Hz） Auxiliary current <55mA, at 220V AC
