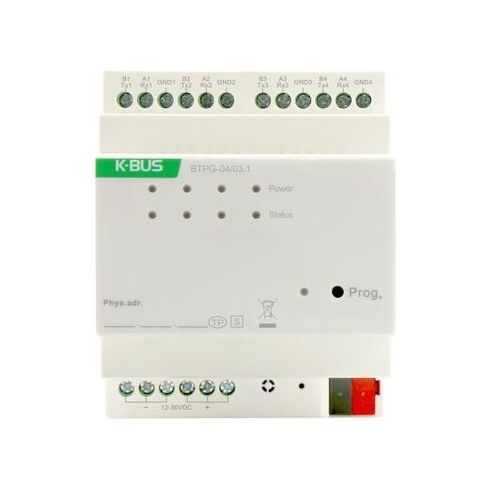

Gateway interface module
DIN railKNXRS232

gateway interface module
gateway interface module
Add to favorites
Compare this product


Characteristics

Type
gateway
Other characteristics
DIN rail, KNX
Network
RS485, RS232

Description

KNX Gateway for RS485/RS232 mainly applied in the intelligent control system and installed on the distribution boards with 35mm mounting rail, which can realize Modbus/RS485/RS232 and KNX bus communication.​KNX Gateway for RS485/RS232 powered from KNX bus, and need a 12-30V DC auxiliary supply voltage. It is available to assign the physical address and configure the parameters by engineering design tools ETS with .knxprod ( support edition ETS5.7 or higher ).  Configure basic parameters of communication, such as Baud rate, data bit, stop bit, parity bit and etc.  Channel supports Max.500 datapoints. Each function point is undirectional, which can be configured direction, name and datatype(1bit/2bit/4bit/1byte/2byte).  As Modbus master, read register data from slave and communicate with KNX.  As Modbus slave, report KNX data to master or BA system.  As normal gateway, only converting data, without communication mechanisms and logic.  Support DAIKIN, HITACHI, Mitsubishi and other VRV Air conditioners in Modbus RTU mode, independent control up to 64 devices.  Support some manufacturers of electric curtains and background music host control protocol. Operation voltage 21-30V DC, via the KNX bus Bus current <6mA 30V DC Bus power <180mW Dimension 72 x 90 x 64.1mm Weight 0.17KG Voltage 12-30V DC Current <60mA 30V DC Power consumption <1.8W KNXBus connection terminal (red/black) Auxiliary power Screw terminals Operation –5 °C ... + 45 °C Design Standard 35 mm DIN rail installation
