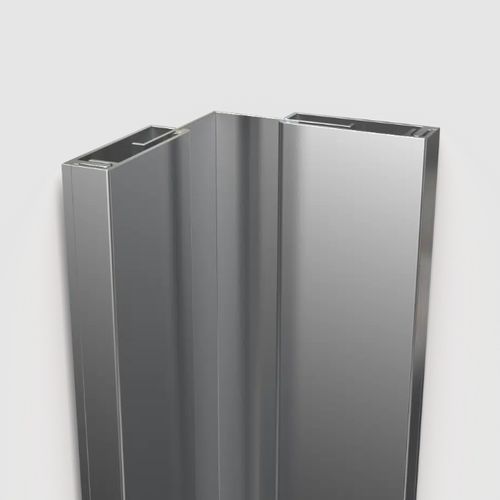

Seismic expansion joint JDV 4.02

stainless steelanodized aluminumaluminium

Seismic vertical expansion joint in anodized aluminum, with pre-drilled side plates and a central plate to absorb large movements. Ideal for use on walls, facades and ceilings. Available in 3lm. JDV 4.02 seismic expansion joint for a perfect finish This vertical expansion joint is specially designed for a high-quality finish with invisible fastenings. It is fastened on both sides with 4.5×50 mm stainless steel screws and 8×40 nylon plugs (the screws used vary according to the substrate). The JDV 4.02 seismic joint can also be powder-coated to blend in perfectly with the building. A corner anodized aluminium profile (JDV 4.02 A) is available to ensure aesthetic continuity with the flat model. This vertical expansion joint is available for initial openings from 40 to 200 mm (larger dimensions available on request). It accepts seismic movements of up to +100/-100 mm. Our JDV 4.02 seismic joint is compatible with JDH 6.22, JDH 6.24 and JDH 6.26 seismic expansion joints for floor, for example. Suitable for all types of building: railway stations, airports, shopping centers, universities, etc. Quick and easy to install, an installation sheet is available on request for this vertical expansion joint. All aluminium expansion joint for facades, walls and ceilings. Aesthetic solution for any kind of building : train stations, airports, malls, etc.
