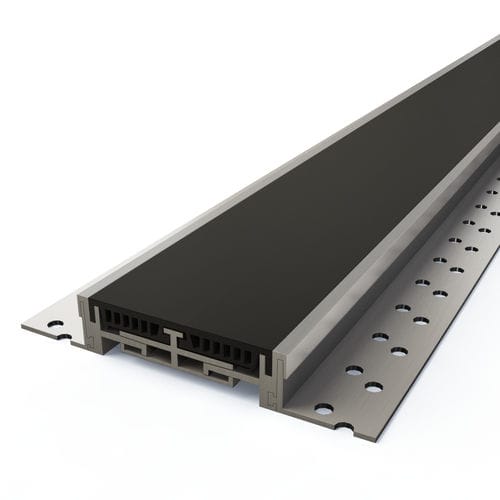

Expansion joint with insert JDH 5.06

aluminumPVCresin

Wide floor expansion joint For joint gaps from 100 to 200 mm Seismic floor expansion joint, comprising aluminium side angle sections connected by an interchangeable flexible insert in the centre with plain surface, available in black or grey (other colours on request), able to take up expansion and contraction movements. Suitable for all types of finish: concrete, screed, tiling, etc. For indoor and outdoor floor joints. Suitable for light traffic of pedestrians, and also for traffic of light trucks, and in the case of the type ref. JDH 5.06-100, for non-intense traffic of light vehicles. Section length of 4 m. Flexible nitrile insert, interchangeable. Aluminium side angle sections, pre-drilled. Floor-to-floor type, and floor-to-wall type with exposed skirting and hidden skirting (type EV). Black or gray plain surface inserts for easier maintenance (specially suitable for hospital environment). Special parts on demand (T, X, L…). Mechanical floor expansion joint for exterior and interior use made of aluminium side plates, a rigid PVC central part and interchangeable flexible insert. For all types of finishes: tiles, marble, natural stone, resin, flexible floors...
