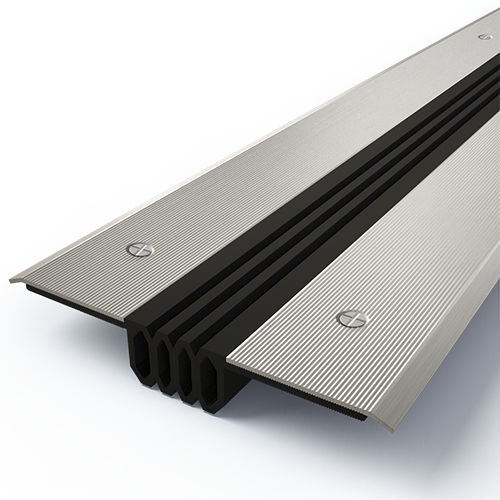

Expansion joint with insert JDH 5.31

stainless steelaluminumsteel

Product compatible with our fire protection solutions and our waterproofing membranes Floor expansion joint Designed for car parks, access ramps,… For joint gaps of 45mm Floor expansion joint for interior carparks, access ramps, and any other applications without traffic or with traffic of low speed vehicles. The JDH 5.305 surface mounted profile is made of flexible section and two galvanised steel, aluminium or stainless steel side plates. Perfectly suited for finished floor. For indoor floor joints with a gap of 45mm. Floor-to-floor type, can also be installed as floor-to-wall type with exposed skirting. Recommendation : We recommend to glue the wings of the insert. Hot-welding recommended for junction of the flexible insert (accessories upon request). Floor expansion joint for interior carparks levels, access ramps, and any other place with or without traffic of slow vehicles. Made of flexible insert and mill finish aluminium or galvanized steel or stainless steel side plates, special finished floor.
