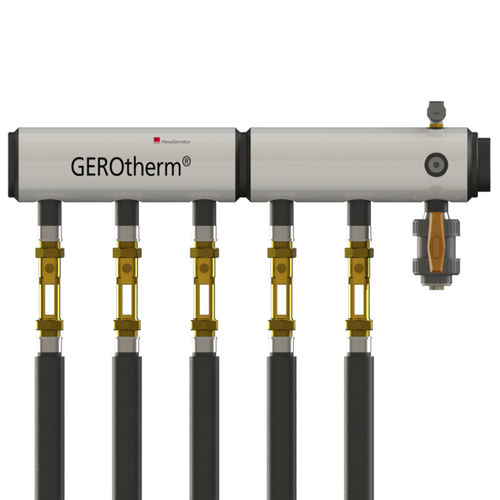

Horizontal geothermal collector SAVE 125

Max. flow: 19.6 m3/­­h* Material: PE100 Temperature range: –20°C/­­+40°C Temperature range @ max. 3 bar: –20°C/­­+50°C Max. 15 connections de 40 mm or 50 mm High-quality plastic ball valve TYPE GF 375 with removable ball seat‎ Flat-sealing connections with ball valve With hyline connection: de 40 or de 50 = 20–60l/­min‎ de 40 = 20–70 l/­­min and 5–42 l/­­min selectable de 50 = 20–70 l/­­min and 5–42 l/­­min selectable‎ With filling/­drainage valve de 40 or de 50 mm Flat-sealing connections with ball valve /­ balancing valves Bleeder R½" Outlet Y selectable according to table 3 connections ½"
