Wall hinge CENTERFOLD 80/H

metalcontemporary

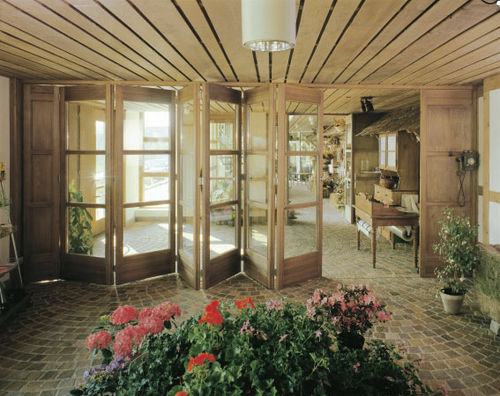

Flush folding partition walls without a bottom guide channel. Hardware system for large wooden centre fold walls with panel weights up to 80 kg (176 lbs.). Description HAWA-Centerfold 80/H is a hardware system for wooden centre fold walls with up to 80 kg (176 lbs.) heavy panels. Installations are simple to plan, and quick to assemble. A pivot bearing secures the first panel in the set; the others line up with the help of elegant, stainless steel hinges that bring the panels closer together and minimise the panel stacking space required, the panel set and the opposing end may also have a pivot door fitted. Attached to every other panel is a folding-/pivot door catch with an integrated, individually adjustable retainer, to hold the centre fold wall flush when closed. Mid-point panel suspension means that HAWA-Centerfold 80/H installations do not require a bottom guide channel. A bar bolt lock op-erated at handle height keeps out unwanted visitors. Alternatively, an unobtrusive deadbolt fitted to the bottom edge of the panel provides almost invisible locking. Both locks engage with floor inserts, or a locking plate. Minimum panel width 500 mm Maximum panel width 900 mm Panel thickness 35-45 mm (Panel Thickness 46-57 mm available on special request) Maximum panel weight 80 kg (176 lbs.) No bottom guide channel Left and right-hand, inwards or outwards-opening installations all use the same components A communicating pivot door can be added to the panel stack, or the opposing end Vertical adjustment +- 3 mm Light and quiet running Panel stack stores compactly
