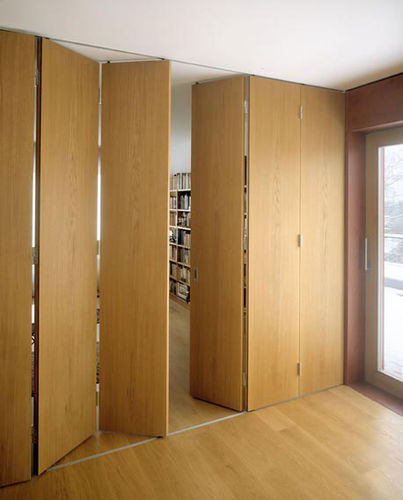

Wall hinge VARIOFOLD 80/H

metalcontemporary

Flush partition walls with flexible folding. Hardware system for large wooden folding walls with panel weights up to 80 kg (176 lbs.). Description HAWA-Variofold 80/H is a hardware system for wooden folding walls with up to 80 kg (176lbs.) heavy panels. Installations are simple to plan, and quick to assemble. A pivot bearing secures the first panel in the set; the others line by means of elegant, stainless steel hinges that bring the panels closer together and minimise panel stacking space requirements. The panel set and the opposing end may also have a pivot door fitted. Attached to every other panel is a folding-/pivot door catch with an integrated, individually adjustable retainer, to hold the folding wall flush when closed. With HAWA-Variofold 80/H, panels are quided in a bottom guide channel. Installations with two panels on either side and up to 3,6 m wide are also possible without a bottom guide channel. A bar bolt lock operated at handle height keeps out unwanted visitors. Alternatively, an unobtrusive deadbolt lock fitted to the bottom edge of the panel provides almost invisible locking. Minimum panel width 500 mm Maximum panel width 900 mm Panel thickness 35-45 mm (Panel Thickness 46-57 mm available on special request) Maximum panel weight 80 kg (176 lbs.) Left and right-hand, inwards or outwards-opening installations all use the same components A communicating pivot door can be added to the panel stack, or the opposing end Equal-width panels for simple planning Vertical adjustment +- 3 mm Light and quiet running Panel stack stores compactly
