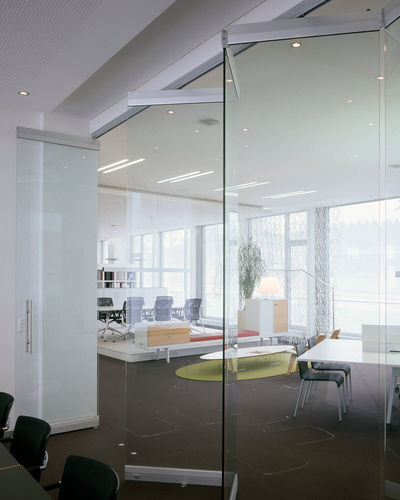

Wall hinge CENTERFOLD 80/GV

metalcontemporary

Hardware system for all-glass concertina walls up to 80 kg (176 lbs.). Description With all-glass concertina-wall installations, the suspension point is in the centre of the panel, which means that up to 6 1/2 panels may be installed without the need for a bottom guide. An access door equipped with our top pivot may also be added on the opposite side to the folding stack. All mechanisms, suspension devices, guides and locks are fully integrated into highly attractive suspension and glass retainer profiles, and our newly developed hinge is installed on the side of the profile. The suspension and glass retainer profiles are the same ones used for HAWA-Variotec 150/GV stacking-wall system. Attached to every other panel is a folding-/pivot door catch with an integrated, individually adjustable retainer, to hold the folding wall flush when closed. Our documentation simplifies the task of planning such systems, and installation is also simple and convenient. Min. panel width 500 mm Max. panel width 900 mm Max. panel height 2600 mm Max. panel weight 80 kg (176 lbs.) The same components may be used for constructing installations that open to the left or right, inwards or outwards The opposite side may be equipped with a separate pivot door Vertical adjustment ± 3 mm Elegant design Secure locking mechanism Extremely smooth and silent operation Minimal space requirement in staking area Fully tempered monolithic glass 10/12/12.7 mm Fully tempered laminated glass 10,8–13 mm
