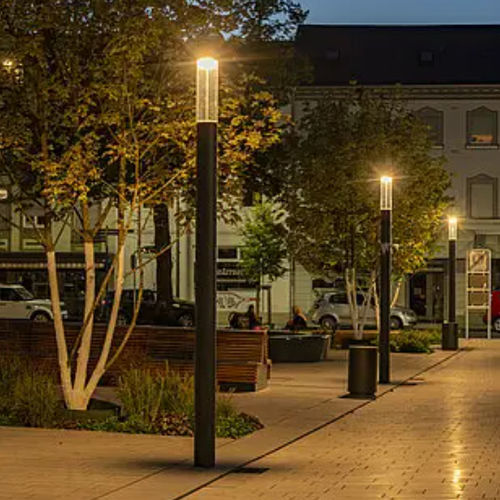

Public space bollard light CITY ELEMENTS 200

contemporaryPMMAPC

General
CITY ELEMENTS is a multifunctional lighting system designed to meet the requirements of urban spaces. Thanks to modular elements, three diameters and configurable heights up to 9 m and beyond, the system can be adapted to specific site conditions. Its broad range of lighting variants and multifunctional options provides practical added value for public areas.

Features

• Three diameters: 180 mm, 200 mm and 230 mm.
• Modular elements: combinable base, intermediate and end modules.
• Multifunctional options: loudspeakers, cameras, spotlights, WLAN, gobos, power and water connections, e-mobility charging infrastructures.
• Wide range of lighting variants using advanced LED technology.

Technical details (excerpt)

• LED lifetime: L90 B10 / 100,000 h (TA ≤ 25° C).
• Rated luminous flux: see variants below.
• Ingress protection: IP65.
• Impact protection (IK): IK07 (general); IK10 (PC); IK06 (PMMA).
• ENEC: available for selected models; others on request.

Rated luminous flux (selected variants)
City Elements 200-AA: 909 - 6187 lm
City Elements 200-AA ZERO: 456 - 2964 lm
City Elements 200-AR: 1241 - 7498 lm
City Elements 200-AR ZERO: 1171 - 9960 lm

Dimensions & visual representations
Product graphics and dimensional drawings are available for CE200 variants (AA, AR, ARR, AS_LED, BS_LED, BH, CCTV, Speaker).

Specifications

• Product family: CITY ELEMENTS 200 (multifunctional lighting system).
• Available diameters: 180 mm, 200 mm, 230 mm.
• Variable heights: up to 9 m and beyond (customisable).
• LED lifetime: L90 B10 / 100,000 h at TA ≤ 25° C.
• Rated luminous flux ranges by variant: AA 909–6187 lm; AA ZERO 456–2964 lm; AR 1241–7498 lm; AR ZERO 1171–9960 lm.
• Ingress protection: IP65.
• Impact protection (IK): IK07 general; IK10 (PC); IK06 (PMMA).
• ENEC certification: for selected models (others on request).
• Multifunctionality examples: audio, video, lighting accessories, WLAN, power/water supply and e-mobility charging.
