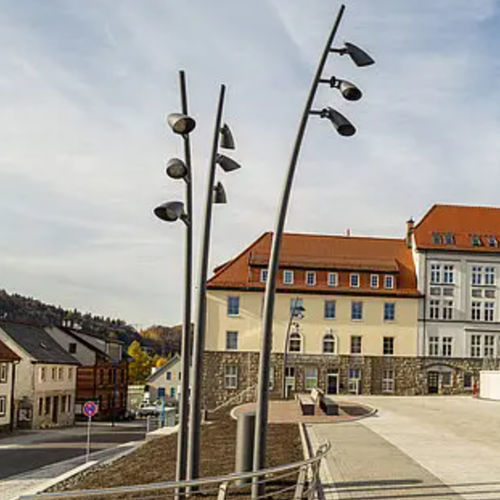

Urban lamp post ARINI

contemporaryPMMAPC

General ARINI: Light, multifunctionality and design combined in a single lighting system. ARINI is developed to increase safety, enable communication and networking, and enhance urban attractiveness and quality of life.

Product features

• Multifunctional lighting system integrating lighting, communication and networking functions.
• Designed to improve public safety, connectivity and urban ambience.
• Available in multiple versions and accessories (ARINI Light, ARINI Light+, ARINI CCTV, ARINI GOBO, ARINI SPEAKER, ARINI WiFi).

Technical information Luminaire head and shield plate made of die-cast aluminium. Luminaire cover made of PMMA. Head adjustment in 10° increments; horizontal max. 120°; vertical max. 130°. Shield plate adjustable by 360°. Light colour options: 3000K / 4000K. Two axially symmetric and three rotationally symmetric optic variants available. ARINI Light: end cap made of PC, painted. Protection class I or II depending on configuration. Equipment: LED approx. 54 W. ARINI Light+: end cap made of PC, partially satin-finished inside, polished outside. If RGBW illumination is used, three controller variants are available (CASAMBI, DMX, DALI). Protection class I or II. Equipment: LED up to approx. 60 W. ARINI CCTV / GOBO / SPEAKER: end cap made of PC, painted. ARINI WiFi: end cap made of PC, black.

Technical data (table) LED lifetime: L90 B10 / 100,000 h (TA ≤ 25° C)
Ingress protection: IP66
Mechanical impact resistance: IK08

Related items and dimensions Variant-specific product overview, technical data and dimensions are available per variant. Dimension graphic is provided for reference.

Technical specifications

• Materials: luminaire head and shield plate – die-cast aluminium; luminaire cover – PMMA; end caps – PC (variant dependent).
• Head adjustment: 10° increments; horizontal max. 120°; vertical max. 130°.
• Shield plate rotation: 360° possible.
• Light colour options: 3000K, 4000K.
• Optics: two axially symmetric and three rotationally symmetric variants.
• ARINI Light LED power: approx. 54 W.
• ARINI Light+ LED power: up to approx. 60 W; RGBW with CASAMBI, DMX or DALI controllers available.
• ARINI CCTV / GOBO / SPEAKER: end cap in painted PC.
• ARINI WiFi: end cap in black PC.
• Protection rating: Class I or II depending on configuration.
• LED lifetime: L90 B10 / 100,000 h (TA ≤ 25° C).
• Ingress protection: IP66.
• IK value: IK08.
